N7 Cachalot Pro II

Description

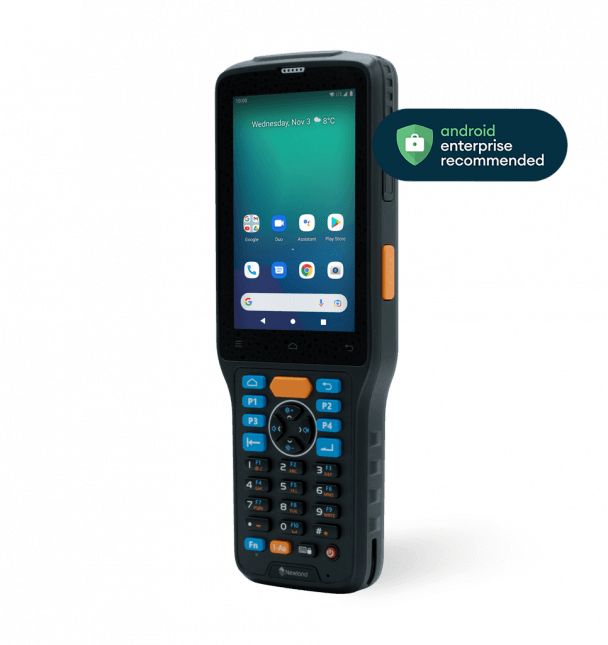

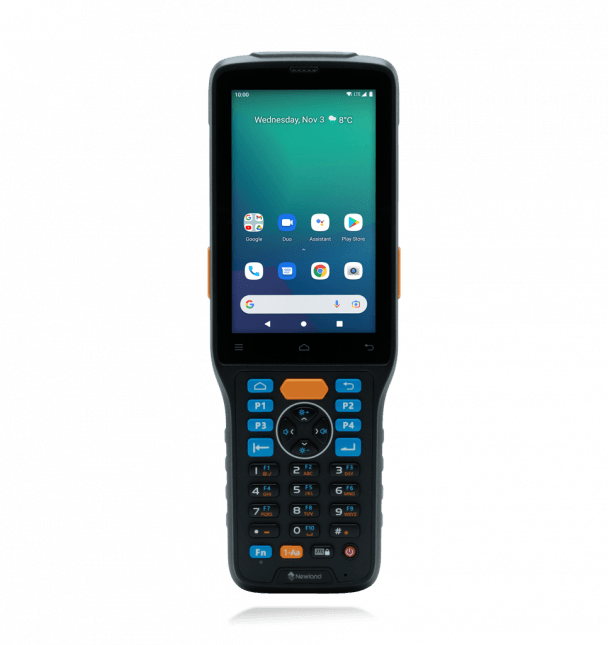

Meet the most rugged entry in the Newland Pro Series! The N7 Cachalot Pro II thrives in even the busiest warehouse and logistic applications. This mobile computer adds processing speed, fast-roaming wireless connections, higher drop- and IP ratings, and added flexibility through a choice of 3 keyboard layouts. Available with Duo Near & Far technology, the N7 Cachalot Pro II enables scanning at both close and long ranges.

Technical features

OS:Android 11 – GMS, Android Enterprise Recommended (AER)
Processor:2 GHz Octa-Core Processor
Memory RAM:4GB
Memory Flash:64GB
Memory Storage Expansion (max.):Micro SD/TF card (max. 128 GB)

Operating system

MDM (certified):Ndevor, SOTI, Airwatch
Terminal Emulation (compatible):StayLinked, Ivanti Velocity
Configuration tools:Ndevor

Connection

WWAN radio (4G configurations only):2G: GSM: 850/900/1800/1900MHz; 3G: WCDMA: B1/B2/B5/B7/B8/ B20/B28a&b, CDMA lx/EVDO: BCO; 4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28a&b, TDD-LTE: B38/B39/B40/B41 (100M)
WLAN RADIO:802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, atbalsta 2.4G un 5G duālās frekvences; Viesabonēšana: Īpaši ātra viesabonēšana
WPAN RADIO:Dual mode, Bluetooth 5.0+LE (atpakaļejošā saderība)
RFID (not supported with pistol grip configuration):NFC: 13.56MHz IS014443A/B, Ml FARE, Felica, NFC Forum Tags
GPS (4G configurations only):Beidou, Galileo, GLONASS, GPS (AGPS)

Environment

Operating temperature:-20℃ to 55℃
Storage temperature:-40°C to 70°C
Humidity:5% to 95% (non-condensing)
Electro Static Discharge (ESD):±8 KV (direct discharge); ±15 KV (air discharge)
Drop resistance:1.8m
IP rating:IP65

Physical characteristics

Battery type:3.8V, 5100 mAh, removable

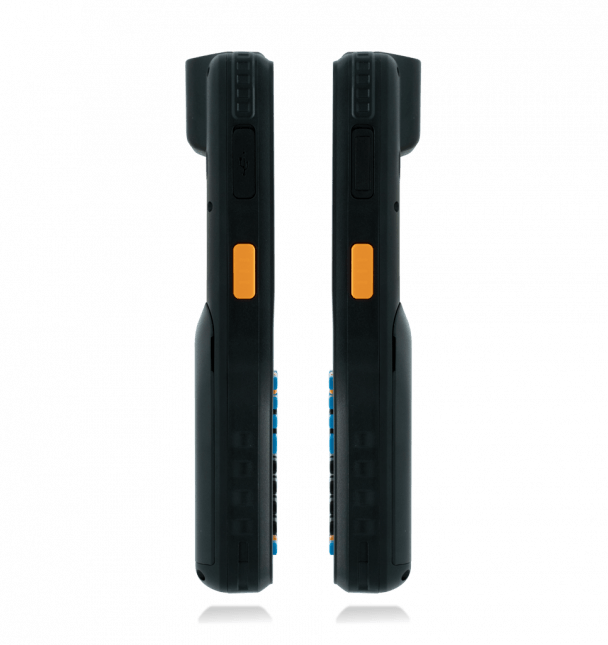

Buttons:Two scan buttons (left/right), three touch navigation keys
Camera:13-MP, PDAF, with LED flashlight
Dimensions (mm):200(H) x 70(W) x 290(L) mm (pistol grip 58mm)
Display:4.0″ WVGA I PS screen with Gorilla Glass, resolution 480×800, supports input with gloves
Expansion slot:MicroSD card (max. 128GB)
Expected Battery life:Scanning:> 15 hours of continuous operations; standby: 500 hours
Interfaces:Quick charging (QC) 3.0, Type-C port, 9V/2A

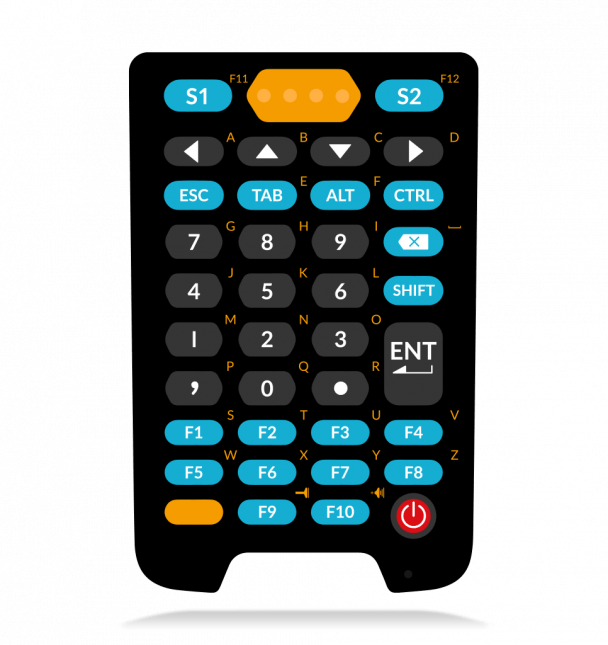

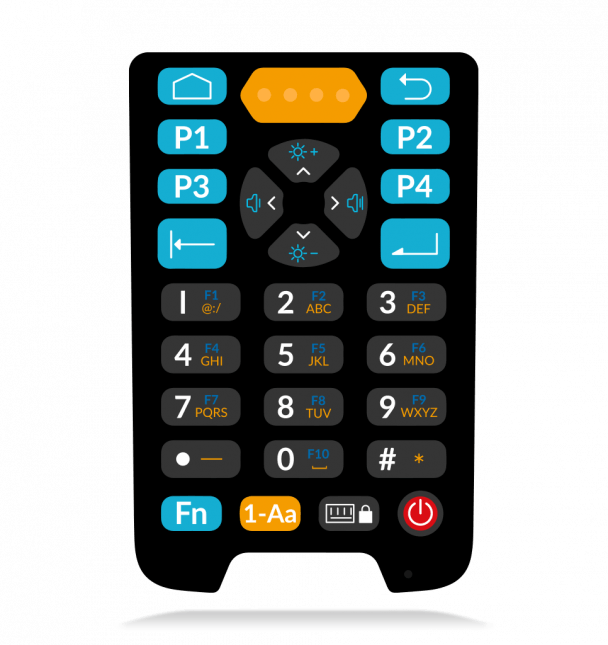

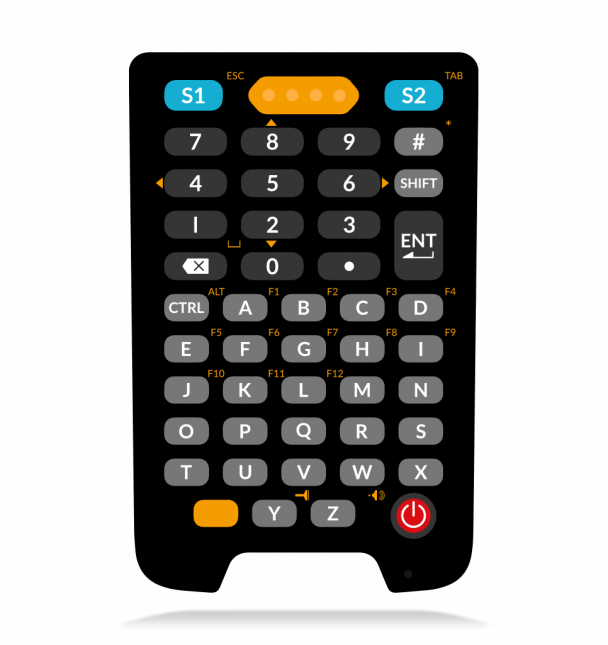

Keypad:29, 38 or 47 physical buttons, white backlight function
Notifications:Vibrator, speaker, and mulit-color LED
Power supply input:AC 100~240V, 50~60Hz
Power supply input:Type-C 5V/3A,9V/2A,12V/1.5A
Sensors:Gravity sensor, Hall switch
SIM (4G):Nano+Nano or Nano+TF
Weight:360g (including battery)

Certificates

Hardware:CE-RED, FCC, BIS, RoHS2.0, REACH, AER, SOTI, UN38.3, IEC62471; Laser safety: IEC60825

Additional accessories

Standart:Hand strap, USB cable, battery and multi-plug adapter (supports fast charging)

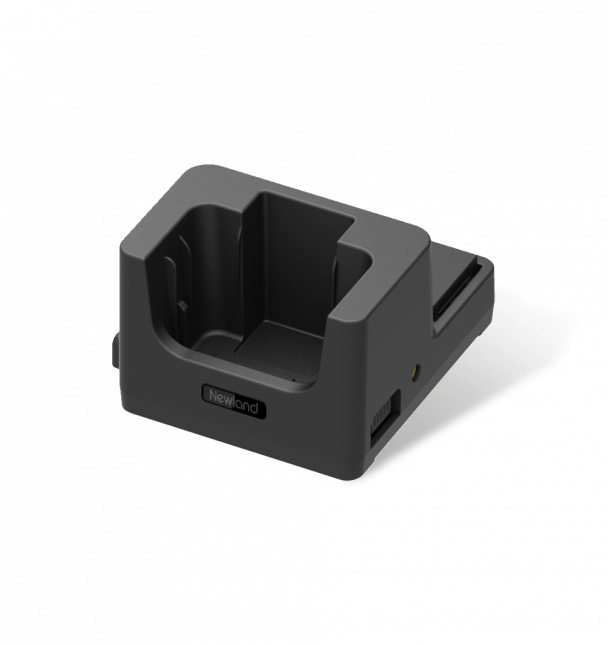

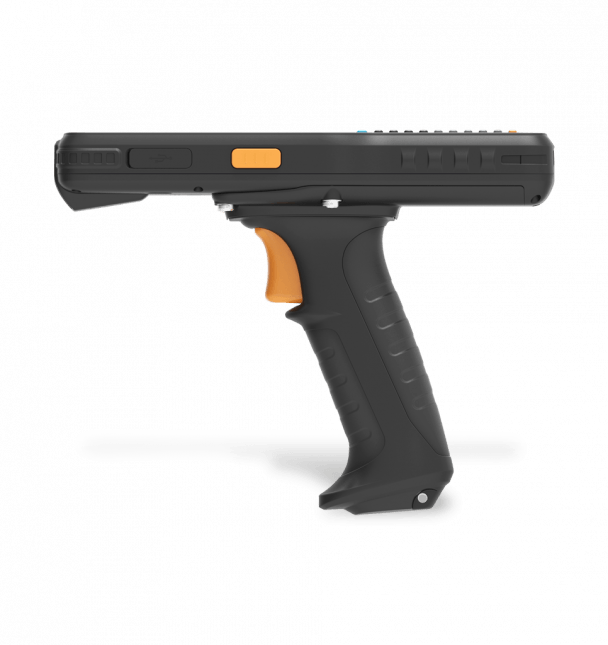

Optional:Single cradle, pistol Grip, 4-slot battery charger, screen protection film

Technical characteristics

Data capture:
1D:All major 1D symbologies
2D:All major 2D symbologies
Image sensor:1280×800 CMOS
Aiming:Laser diode
Illumination:White LED (625±10nm)
Scan Modes:Trigger Mode, Sense Mode
Scan Rate:60 FPS
Depth of field EAN 13 (13mil):SR: 40-480 mm; Duo Near & Far: 20 – 180 cm
Depth of field Code 39 (5mil):SR: 80 – 350 mm
Depth of field Code 39 (10mil):SR: 50 – 575 mm; Duo Near & Far: 20 – 140 cm
Depth of field Code 39 (55mil):Duo Near & Far: 40 – 430 cm
Depth of field Code 39 (100mil):Duo Near & Far: 50 – 600 cm
Depth of field Code 128 (3mil):SR: 100 – 180 mm
Depth of field Code 128 (10mil):SR: 60 – 480 mm
Depth of field Code128 (15mil):Duo Near & Far: 75 – 2600 mm
Depth of field Code128 (100mil):Duo Near & Far: 440 – 9800 mm
Depth of field PDF417 (10mil):SR: 60 – 320 mm
Depth of field DataMatrix (10mil):Duo Near & Far: 105-310 mm
Depth of field DataMatrix (15mil):SR: 55-355 mm
Depth of field DataMatrix (55mil):Duo Near & Far: 190-3900 mm
Depth of field QR (10mil):Duo Near & Far: 110 – 250 mm
Depth of field QR (15mil):SR: 50 – 400 mm
Depth of field QR (55mil):Duo Near & Far: 195 – 3700 mm
