Elo Pay 22″
Colours
| Enclosure Colour: | Black |
Description

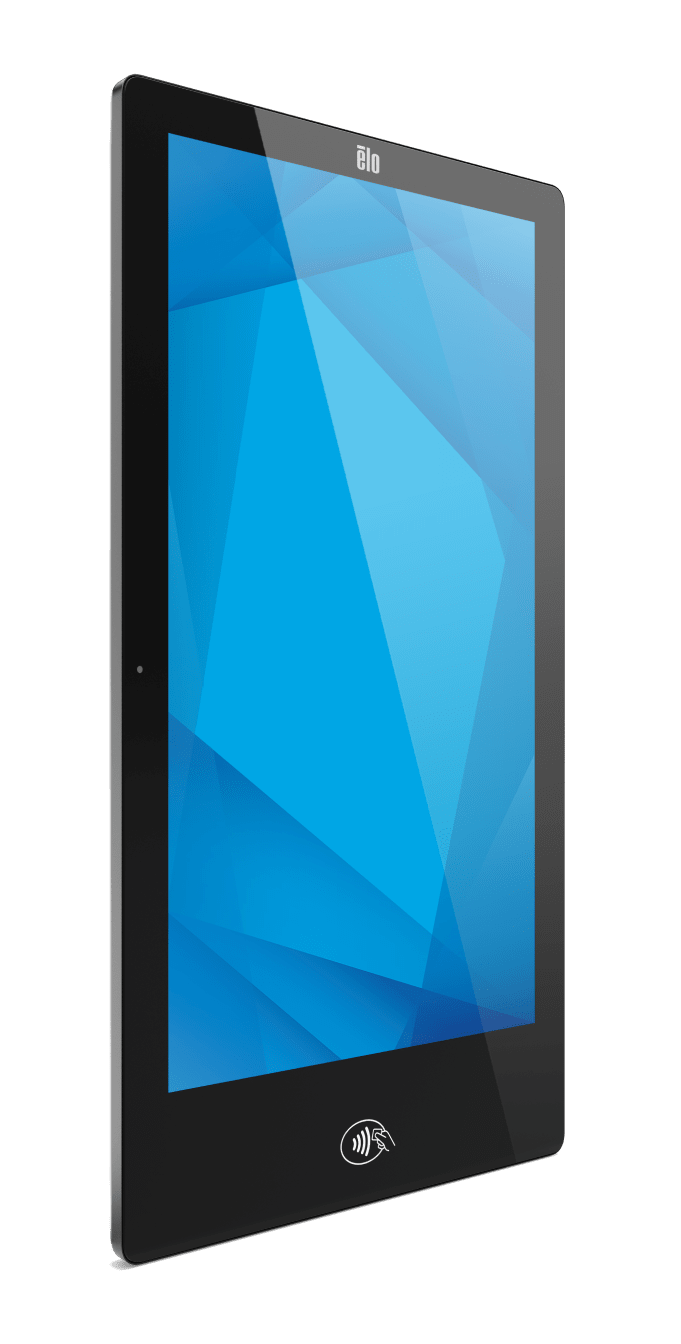

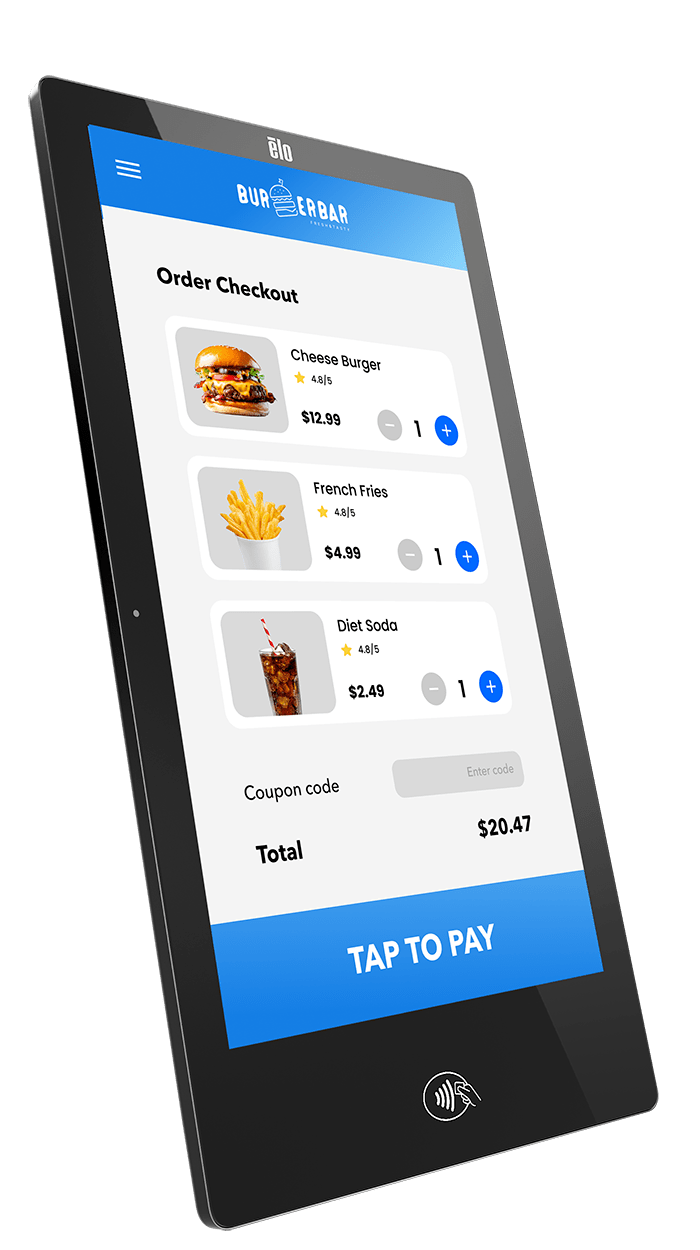

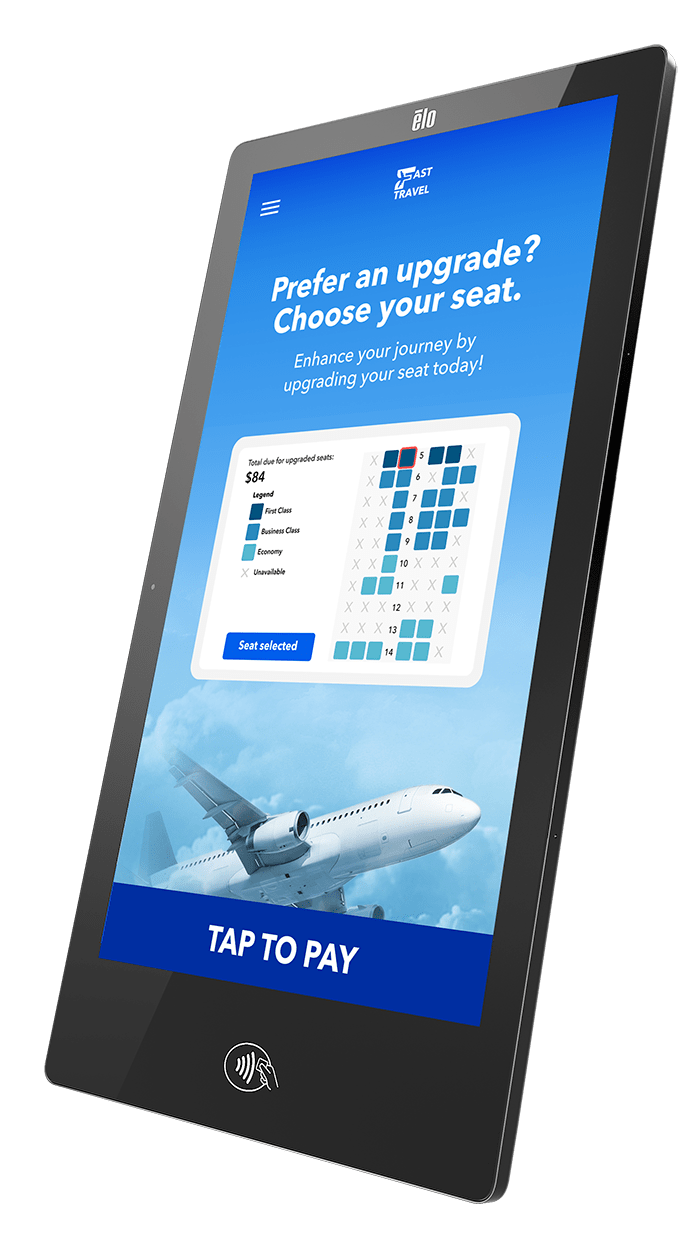

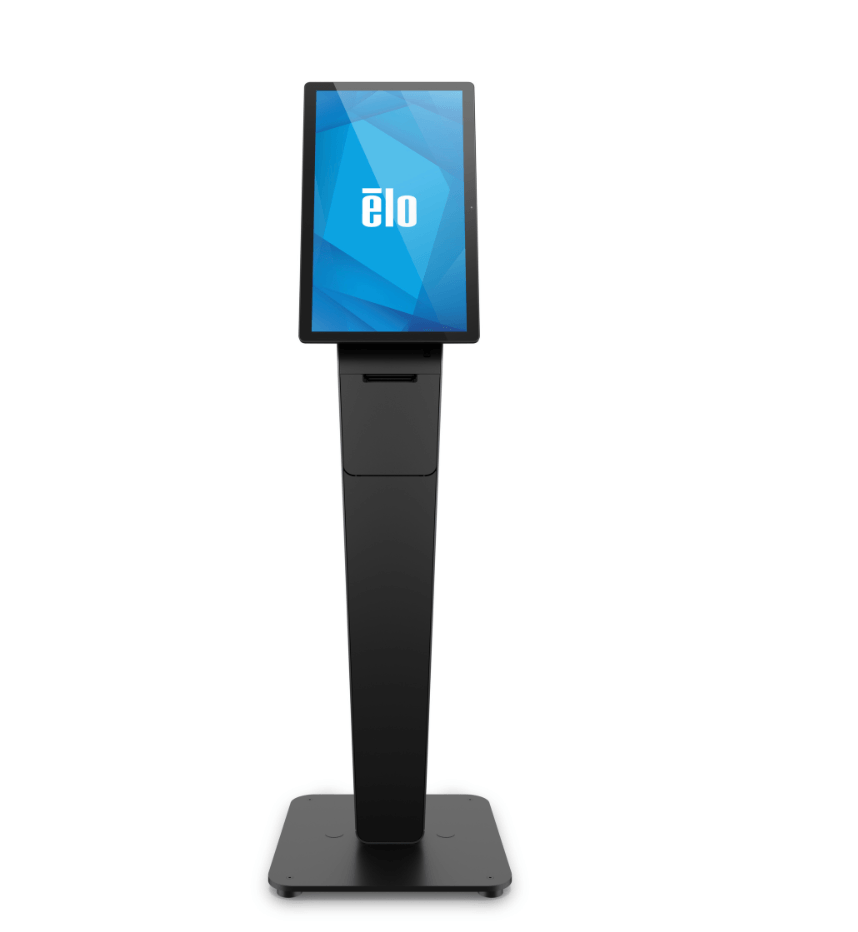

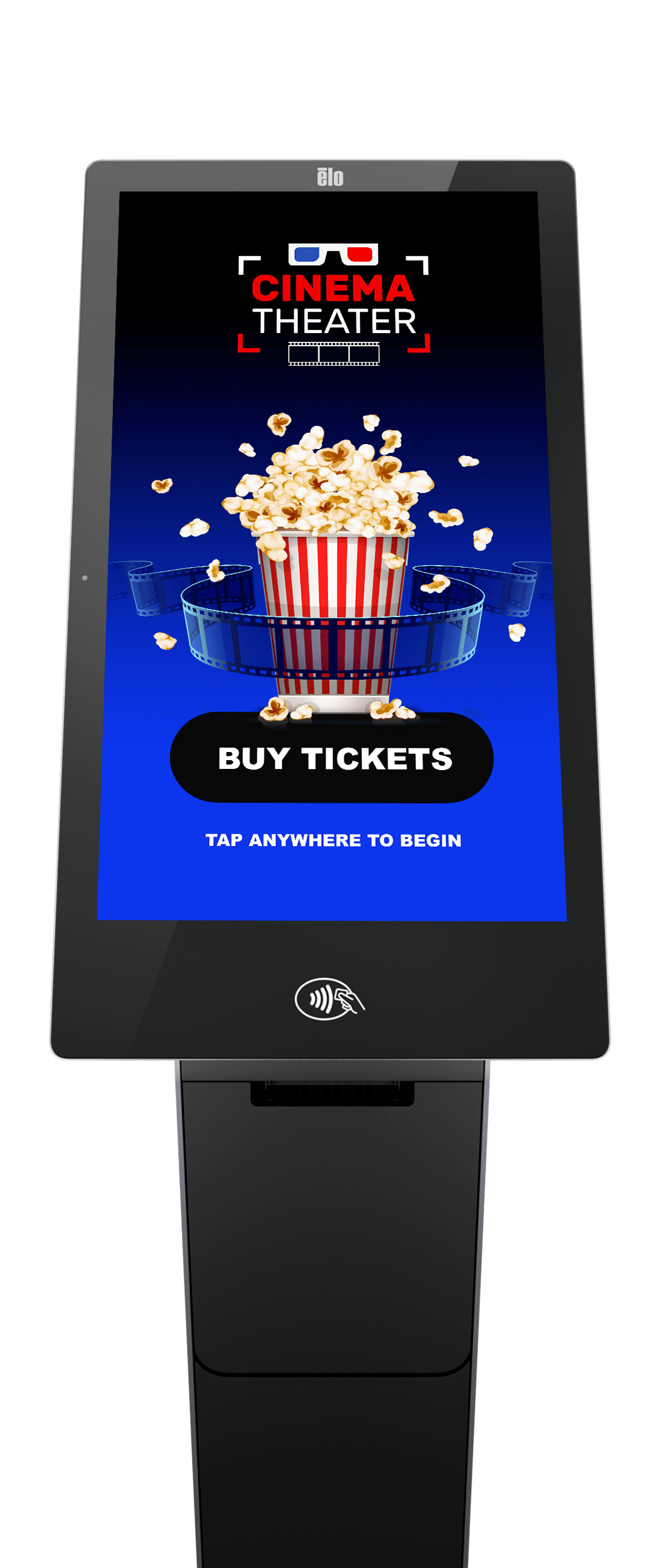

Discover seamless transactions with our Elo Pay 22″ integrated payment solution based on the ISeries 4. The user-friendly self-service platform features a FHD touch display, built-in NFC for contactless payment, Android 12 OS, and Qualcomm SD660 processor. Elevate your customers’ payment experience with the Elo Pay 22-inch touchscreen display. Designed for maximum visibility and effortless interaction, transform every transaction into a smooth and engaging encounter. From self order and ticketing to customer check-in and more, deploying kiosks has never been easier. Pair the Elo Pay 22” with a variety of stands, including the popular Wallaby Pro to create the self serve solution your business needs. Easily mount the Elo Pay 22-inch with the builtin VESA mount – making it easy to pair with a variety of stands, pole mounts and wall mounts.
Operating system
| Operating System: | Android 12 with Google Play Services and EloView content deployment and management |
Screen size
| Diagonal Size: | 21.5″ / 546.10mm |
| Active Display Area: | 18.74″ x 10.54″ / 476 mm x 268 mm |
| Resolution: | 1920 x 1080 @ 60Hz |
| Touch Technology: | TouchPro® PCAP (Projected Capacitive) – up to 10 touches Touch Through TouchPro® PCAP supports up to 6mm glass / 3mm plastic with up to 2 touches |
| Aspect Ratio: | 16:9 |
| Number of Colours: | 8-bit (16.7M) |
| Brightness LCD Panel: | 250 nits; PCAP: 215 nits |
| Response Time: | 14 ms |
| Viewing Angle Horizontal: | ±89° or 178° total / Vertical: ±89° or 178° total |
| Contrast Ratio: | 1000:1 |
Connection
| I/O Ports: | 1x USB-A 3.0 support (900mA), USB-C output*, Micro SD slot, GPIO, RJ45 Ethernet LAN (Gigabit), DC in 3x micro-USB 2.0 Elo Edge Connect ports (Support for 1.2A on one port and 500mA for the remaining two ports) * When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details |
| Wireless: | 802.11a/b/g/n/ac + Bluetooth 5.0 |
| NFC: | Front facing NFC antenna Programmable rear-lit white LED illuminates NFC contactless logo |
Software
| Software: | Fully SoftPOS compatible |
Environment
| Temperature: | Operating: 32°F to 104°F / 0°C to 40°C; Storage: -4°F to 122°F / -20°C to 50°C |
| Humidity: | Operating: 20%-80%; Storage: 5%-95% |
Physical characteristics

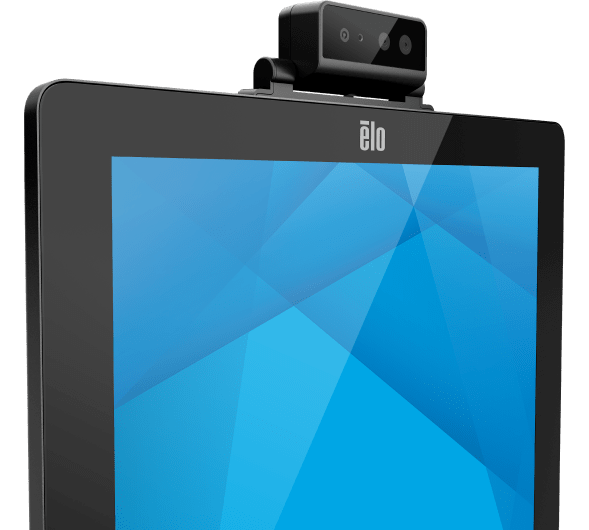

| Webcam: | 8MP, Max Resolution: 1920×1080 30fps, Auto Focus, Focus Range: >10cm |
| Speakers: | 2x 0.8W |
| Audio: | 2x built-in Digital Microphones |
| Dimensions (W x D x H): | 23.06″ x 12.78″ x 1.17″ / 585.6 mm x 324.7 mm x 29.7 mm |
| Shipping Dimensions: | 27.05″ x 7.17″ x 16.54″ / 687 mm x 182 mm x 420 mm |
| Weight: | 9.1 lbs / 4.1 kg |
| Shipping Weight: | 15 lbs / 6.8 kg |

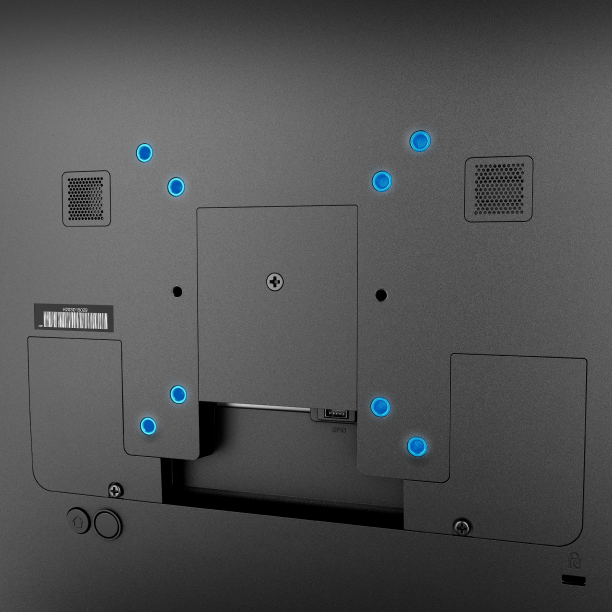

| Mounting Options: | VESA 75mm and 100mm |
| Clock: | Real-Time Clock Lithium coin cell battery for real time clock |
| Touchscreen: | Sealing Touchscreen sealed to LCD |
Technical characteristics
| Processor: | Qualcomm Snapdragon SDA660 |
| Memory: | 4GB |
| Storage: | 64GB |
| Power: | AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz |
| Power Consumption: | On: 19.8W; Off: 0.4W; Sleep: 4.4W |
Video
Price includes
| Warranty: | 2 years standard |
| Extended Warranty: |
|
| Security Updates: | Monthly Android security updates available with Elo OS 360 package. |
| Regulatory Approvals: | UL/cUL (US); FCC (US); IC (Canada); CE (Europe); CB (International); VCCI, MIC (Japan); RCM (Australia) |
| Supported Country List: | Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey, Brazil, Taiwan |
| What’s in the Box: | Elo Pay 22″, NA Power Cable, EU Power Cable, 1x Power Brick, Quick Install Guide, Screws for cable cover door (located in the power/Ethernet bay) |
