RADWAG MA 50.R
Description

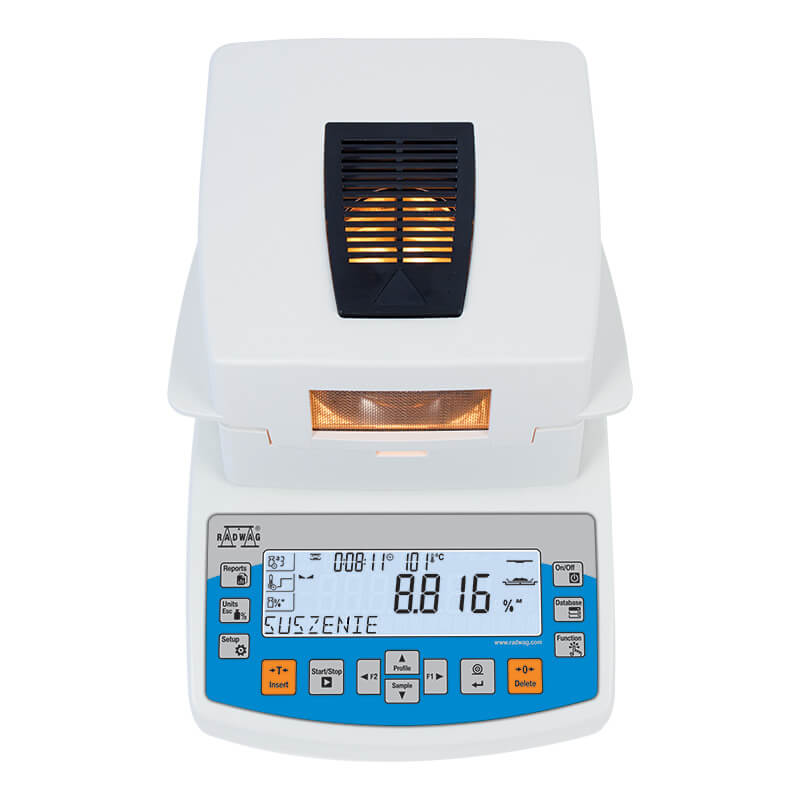

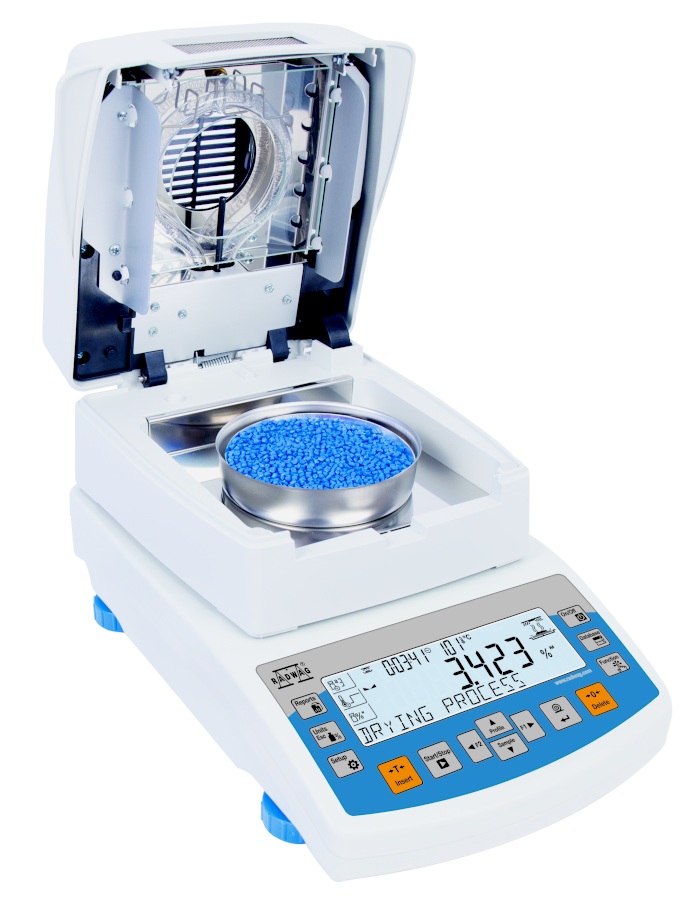

MA 50.R moisture analysers are hi-tech measuring instruments intended for quick determination of relative moisture content,
dry mass content and other parameters in samples of different substances.
MA.50.R series allow chooce one of 4 draying modes
Such a solution allows:
- up to 10 users
- storing up to 1000 different products
- store up to 100 different predefined tares
- draying results report
Physical characteristics
| Leveling system: | Manual |
| Display: | 5” graphic color touchscreen |
| Weighing chamber: | Automatic |
| Maximum sample height: | 20 mm |
| Weighing pan dimensions: | ø90, h= 8 mm |
| Packaging dimensions: | 476×381×346 mm |
| Net weight: | 5.2 kg |
| Gross weight: | 6.5 kg |
| Construction: | |
| Protection class: | IP 43 |
| Features of use: | |
| Display modes: | %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC |
| Drying method: | 4 drying profiles (standard, fast, step, mild) |
| Finish mode: | 4 modes (automatic, manual, time-defined, user-defined) |
| Additional functions: | sample traceability |
| Communication interface: | |
| Communication interface: | RS232¹, USB-A, USB-B, Ethernet, Wi-Fi® |
| Electrical parameters: | |
| Power supply: | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
| Power consumption: | 6 W |
| Heating module power: | 450 W |
| Environmental conditions: | |
| Operating temperature: | +10 — +40 °C |
| SOP – metrological tests: | |
| Mass indictation control: | External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer) |
| Internal adjustment: | For .IC models only, GLP report |
| External adjustment: | For all models, GLP report |
| Drying temperature control: | One- or two-point, depending on the drying profile (equipment: GT105k-12/Z Control Thermometer) |
| Moisture content indication control: | Certified MV Test Set |
| Adjustment: | |
| Internal / External adjustment: | Depending on the type of moisture analyzer, GLP report |
| Drying temperature adjustment: | Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer) |
