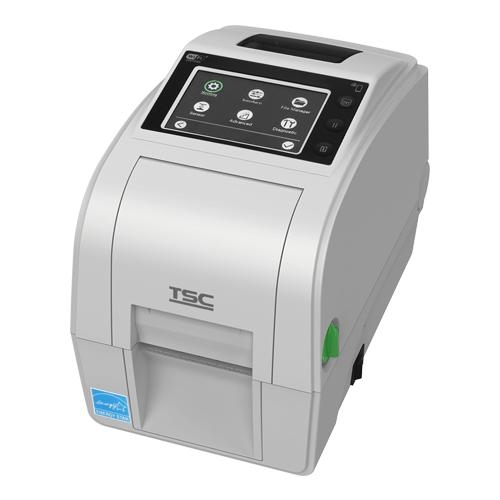

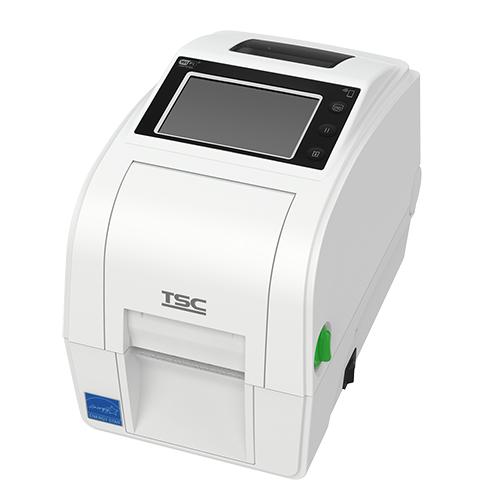

TSC TH320T Series Label Printers
Description
The 2-inch TH Series Desktop Barcode Printers are versatile and flexible for diverse printing requirements. This series’ versatility enables printing a wide range of difficult labels, including thick, tiny, and long labels and certain types of vertical market labels.
Our printer language emulation makes the TH Series plug-and-play. Its firmware automatically identifies major printer languages and begins printing immediately without changing label templates. The TH Series minimises downtime during daily operations through comprehensive printer management tools (Internal Embedded Webpage, virtual control panel, TSC Console, and SOTI Connect), printer shutdown prevention, and supports network security configurations to manage printers efficiently.
The TH Series scales up applications with a wide media width, high-precision printing, and several addable future-proof options. This empowers businesses to adapt to changing requirements for present and future operations. The eco-friendly printer features 100% recyclable packaging and plastic printer casing. Over 90% of printer components are recyclable at the printer’s end-of-life, reducing environmental impact.
Printing
- Resolution 12 dots / mm (203 dpi)
- Printing Method Thermal Transfer & Direct Thermal Max.
- Print Speed 152mm (6″) / second
- Max. Print Width 56.9mm (2.24″)
- Max. Print Length 11,430mm (450″)
Sticker
- Label Roll Capacity 127mm (5″) OD
- Ribbon 90m long, max. OD 37mm, 0.5″ core (ink coated outside)
- Ribbon Width 56mm – 58mm (2.20″ – 2.28″)
- Media Type Continuous, die-cut, black mark, fan-fold, notch (outside wound)
- Media Width 15mm – 60mm (0.59″ – 2.36″)
- Media Thickness 0.06mm – 0.19mm (2.36mil – 7.48mil)
- Media Core Diameter 25.4mm – 38.1mm (1″ – 1.5″)
- Label Length 5mm – 11,430mm (0.20″ – 450″)
Memory
- 128 MB Flash memory
- 128 MB SDRAM
- microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
Connection
- USB 2.0
- RS-232
- USB Host
- Internal Ethernet, 10/100 Mbps
- 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option)
- Bluetooth 5.0 (dealer option)
- MFi Bluetooth 5.0 (factory option)
Software
- Printer Language: TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment
- Operation: 0°C to 40°C (32°F to 104°F), 25% – 85% non-condensing
- Storage: -40°C to 60°C (-40°F to 140°F), 10% – 90% non-condensing
Certificates
- Safety Regulation CB, FCC Class B, IC , CTÜVUS, NOM, CE Class B, UKCA, EAC, CCC, RCM, BSMI, Energy Star 3.2
- Environmental Concern Comply with RoHS, REACH, WEEE, China RoHS
Physical characteristics
- Physical Dimension 146mm (W) x 179mm (H) x 231mm (D)
5.75″ (W) x 7.05″ (H) x 9.09″ (D) - Weight 1.8kg (3.97lbs)
- External universal switching power supply
- Input: AC 100-240V, 1.5A, 50-60Hz
- Output: DC 24V, 2.5A, 60W
- Operation Switch,
- Button, LED/LCD
- 1 power switch
- 1 feed button
- 1 pause button
- 1 reprint button
- 3.5″ color touch display, 480 x 320 pixel
Available configurations
Factory Option:
- MFi Bluetooth 5.0
Dealer Option:
- Peel-off module
- Guillotine cutter (full cut and partial cut)
- Care label cutter (full cut)
- 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module
- Bluetooth 5.0 module
User Option:
- External label roll mount
- KP-200 Plus keyboard display unit
- 10mm narrow media adaptor
Additional accessories
- Quick start guide
- USB cable
- Power cord
- External universal switching power supply
- 0.5″ ribbon paper core
