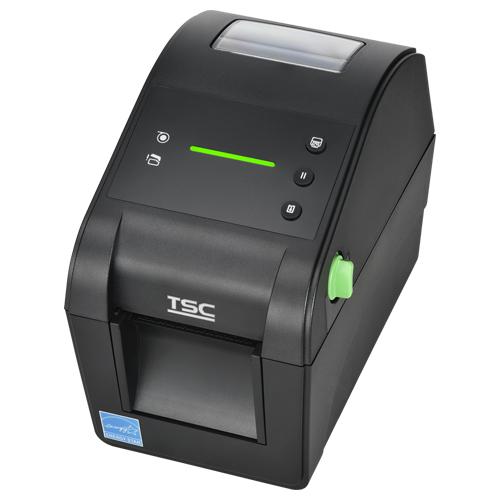

TSC DH320E Series Label Printers
Description
The DH Series 2-inch desktop printers deliver high-performance label printing in a compact, eco-friendly design. With support for thick, small, and specialty labels, they’re perfect for demanding applications. Enjoy plug-and-play setup with smart language emulation, robust printer management tools, and future-ready upgrade options—all while reducing downtime and environmental impact.
Printing
- Resolution 12 dots / mm (300 dpi)
- Printing Method Direct Thermal
- Print Speed 152mm (6″) / second
- Max. Print Width 56.9mm (2.24″)
- Max. Print Length 1,016mm (40″)
Sticker
- Label Roll Capacity 127mm (5″) OD
- Media Type Continuous, die-cut, black mark, fan-fold, notch (outside wound)
- Media Width 15 – 60mm (0.59″ – 2.36″)
- Media Thickness 0.06mm – 0.19mm (2.36mil – 7.48mil)
- Media Core Diameter 25.4mm – 38.1mm (1″ – 1.5″)
- Label Length 5mm – 1,016mm (0.20″ – 40″)
Memory
- 8 MB Flash memory
- 16 MB SDRAM
Connection
- USB 2.0
Software
- Printer Language: TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment
- Operation: 0°C to 40°C (32°F to 104°F), 25% – 85% non-condensing
- Storage: -40°C to 60°C (-40°F to 140°F), 10% – 90% non-condensing
Certificates
- Safety Regulation CB, FCC Class B, IC , CTÜVUS, NOM, CE Class B, UKCA, EAC, CCC, RCM, BSMI, Energy Star 3.2
- Environmental Concern Comply with RoHS, REACH, WEEE, China RoHS
Physical characteristics
- Physical Dimension 138mm (W) x 172mm (H) x 210mm (D)
- 5.43″ (W) x 6.77″ (H) x 8.27″ (D)
- Weight 1.3kg (2.87lbs)
- External universal switching power supply
- Input: AC 100-240V, 1.5A, 50-60Hz
- Output: DC 24V, 2A, 48W
- Operation Switch,
- Button, LED/LCD
- 1 power switch
- 1 feed button
- 1 pause button
- 1 reprint button
- 1 status indicator
- 2 intuitive icon indicators
Available configurations
User Option:
- External label roll mount
- 10mm narrow media adaptor
Additional accessories
- Quick start guide
- USB cable
- Power cord
- External universal switching power supply
