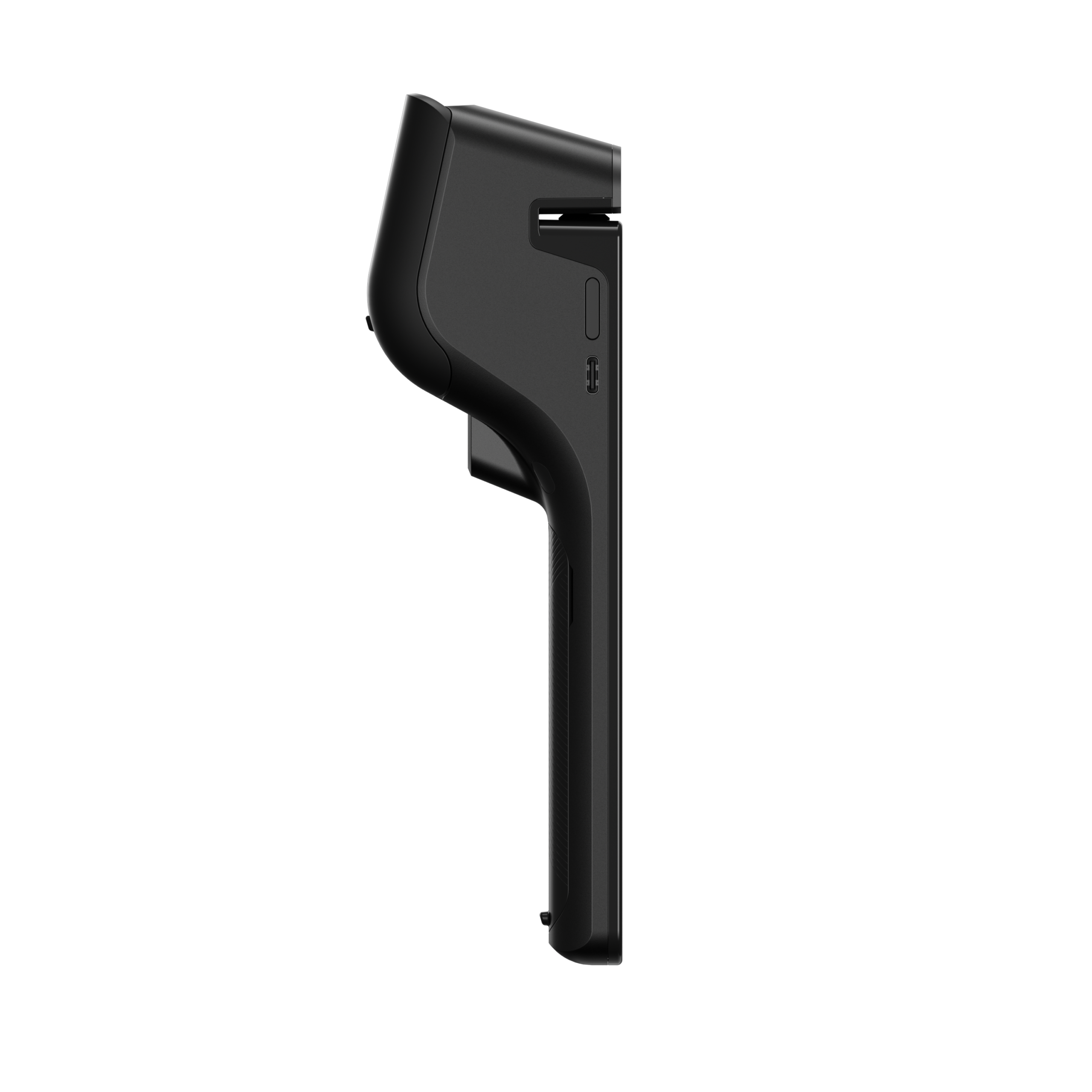

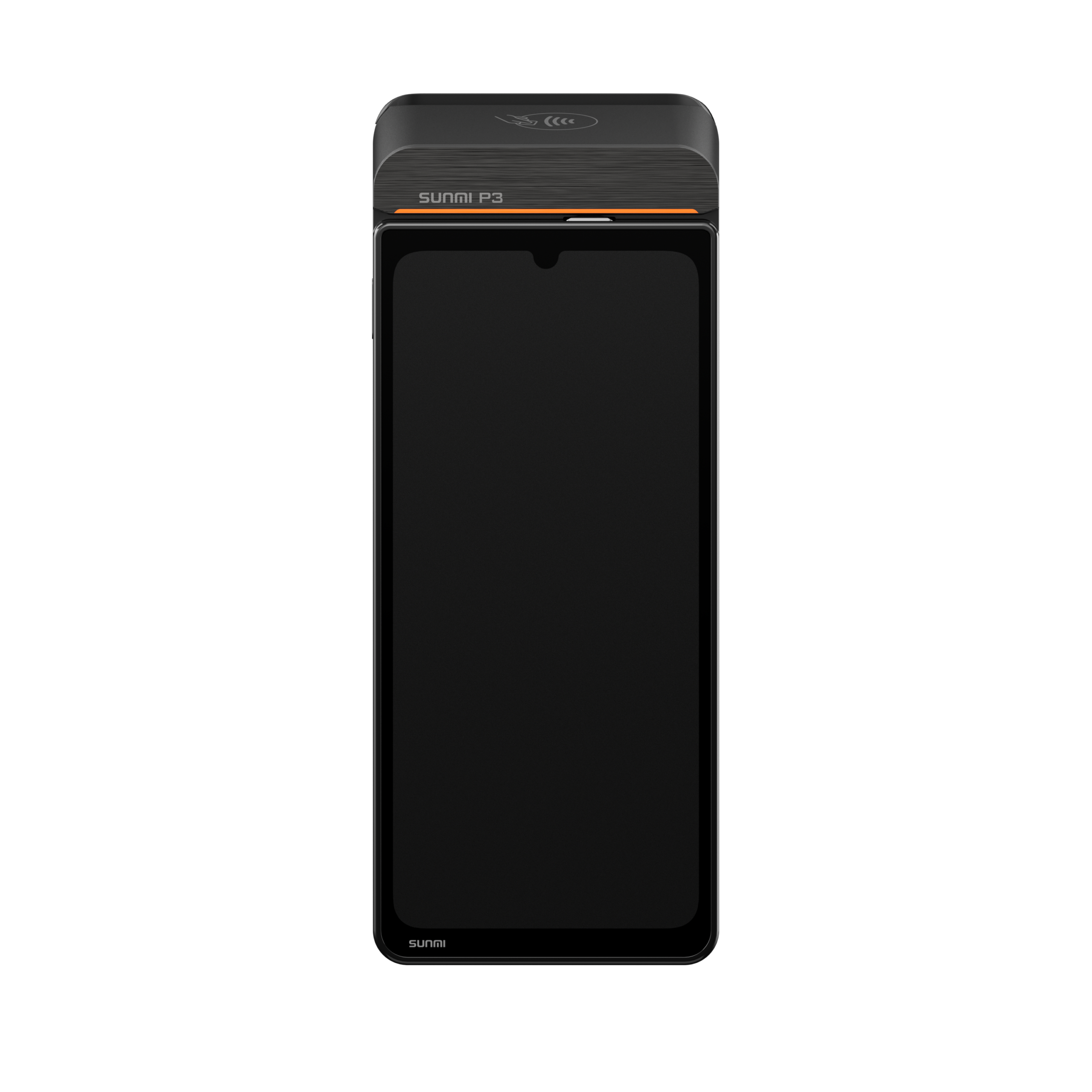

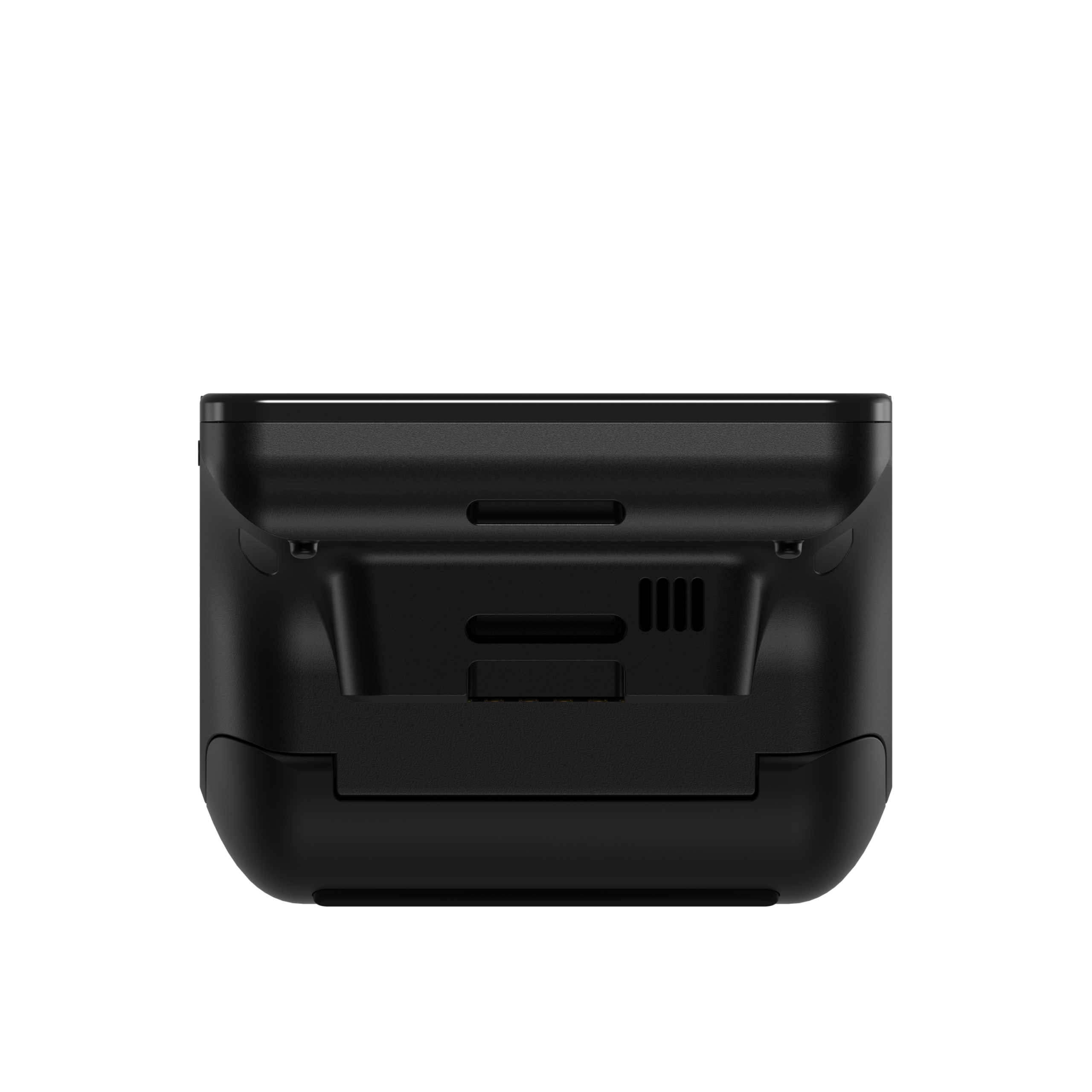

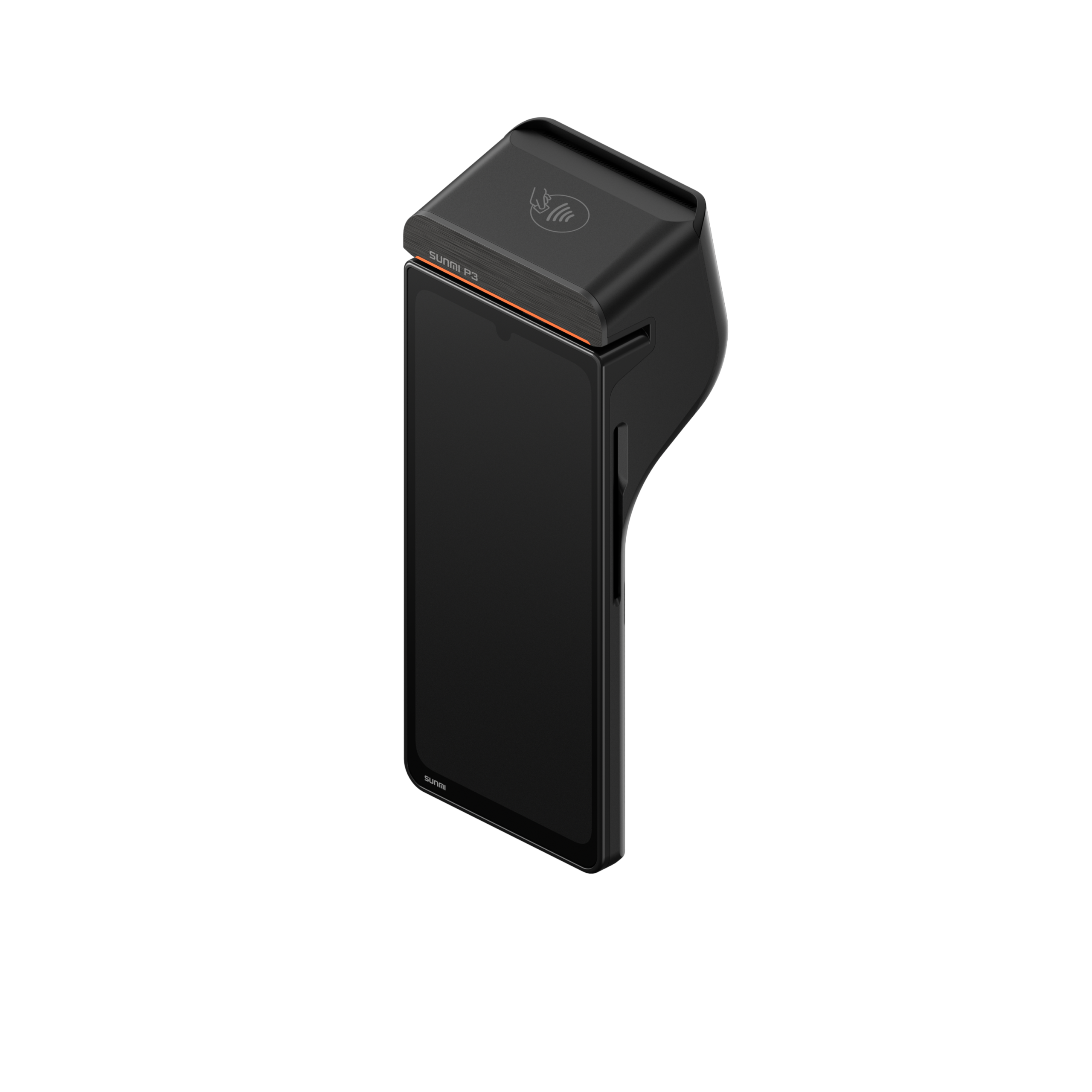

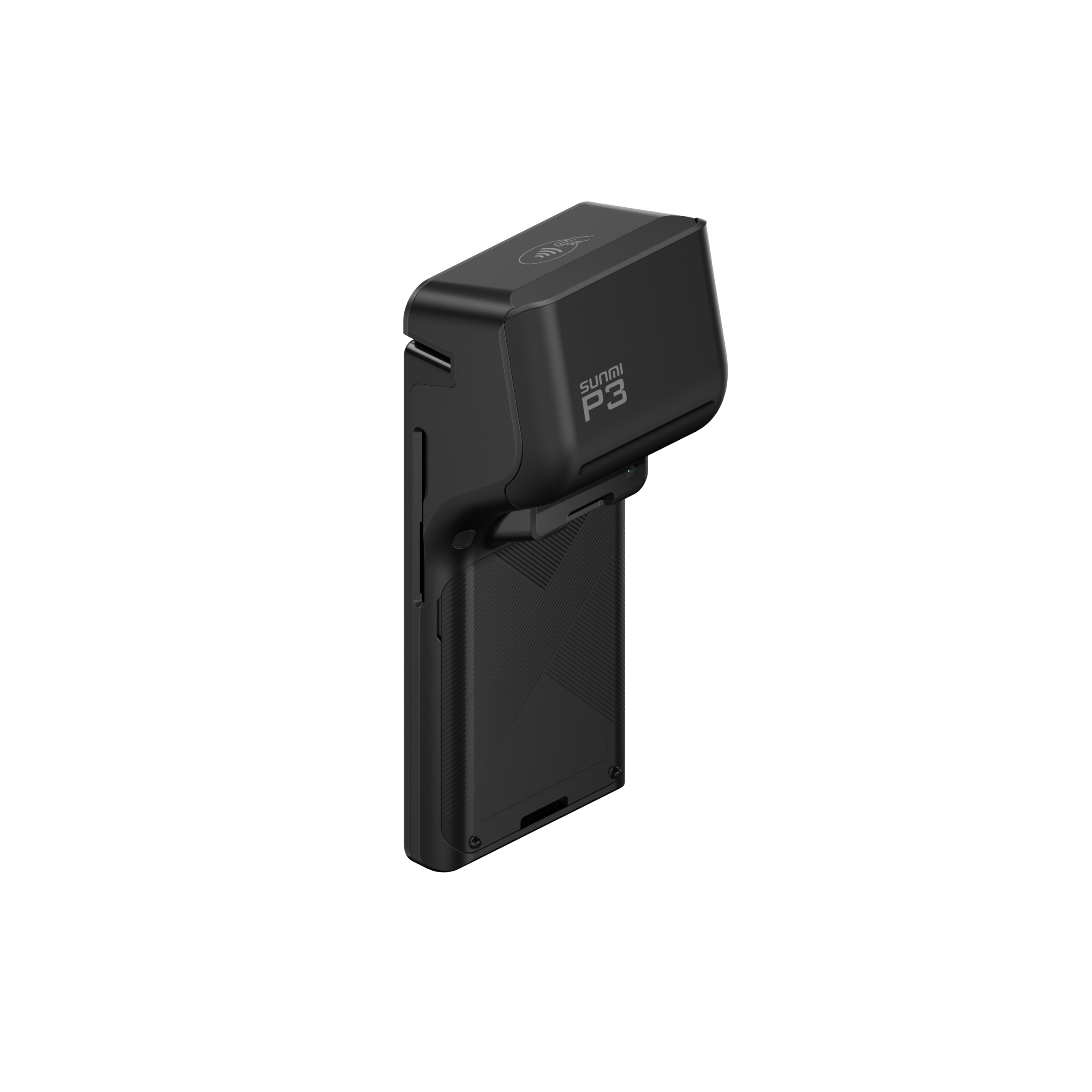

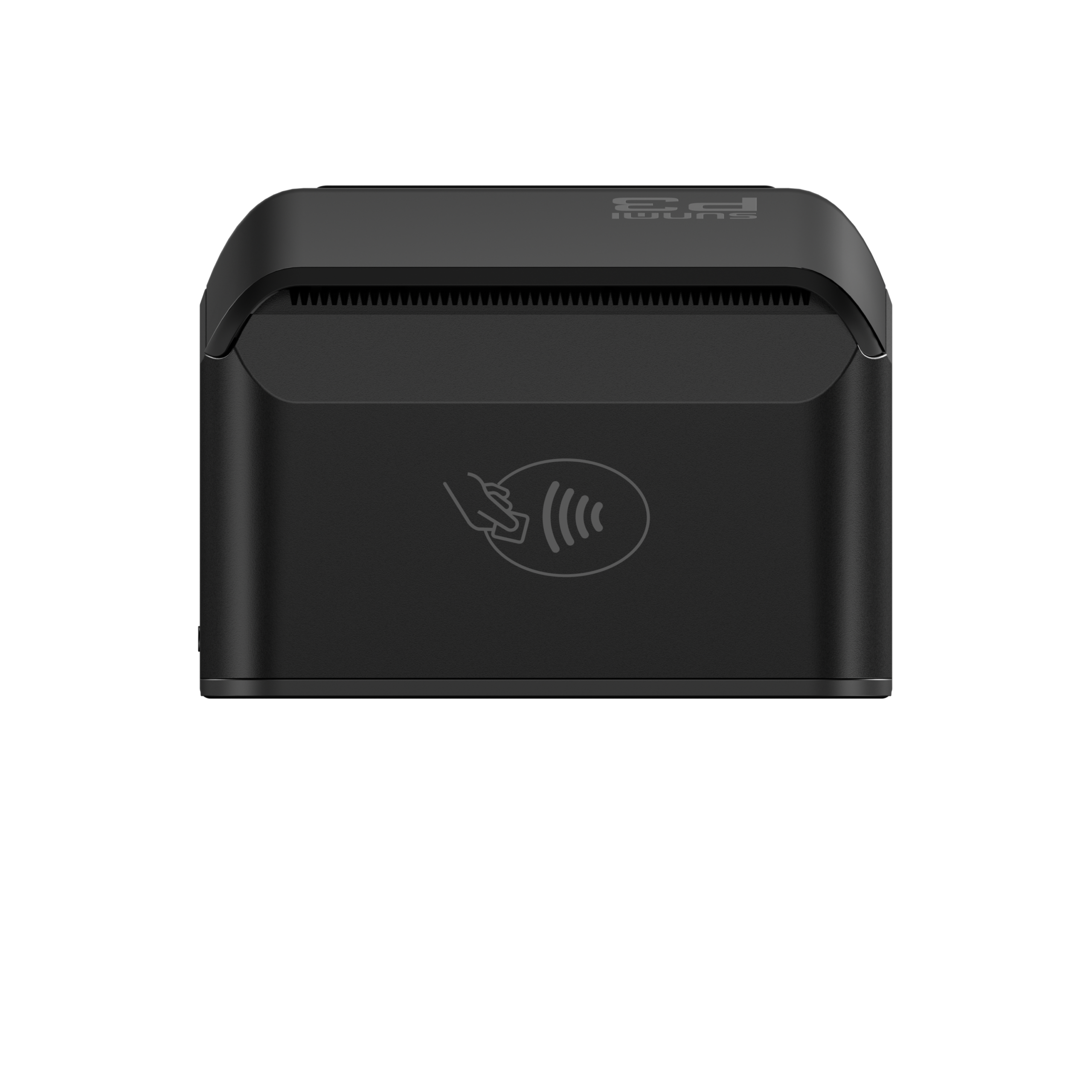

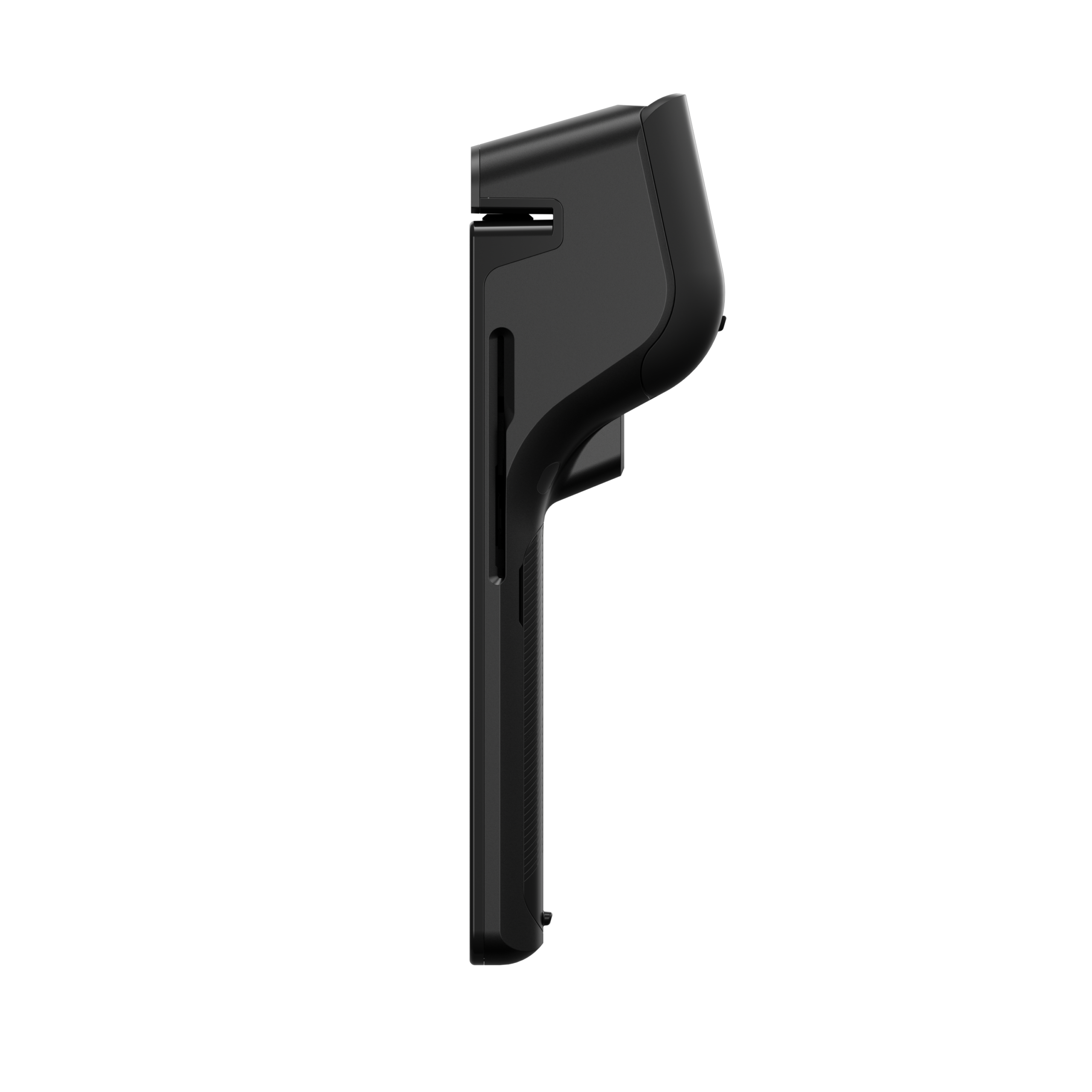

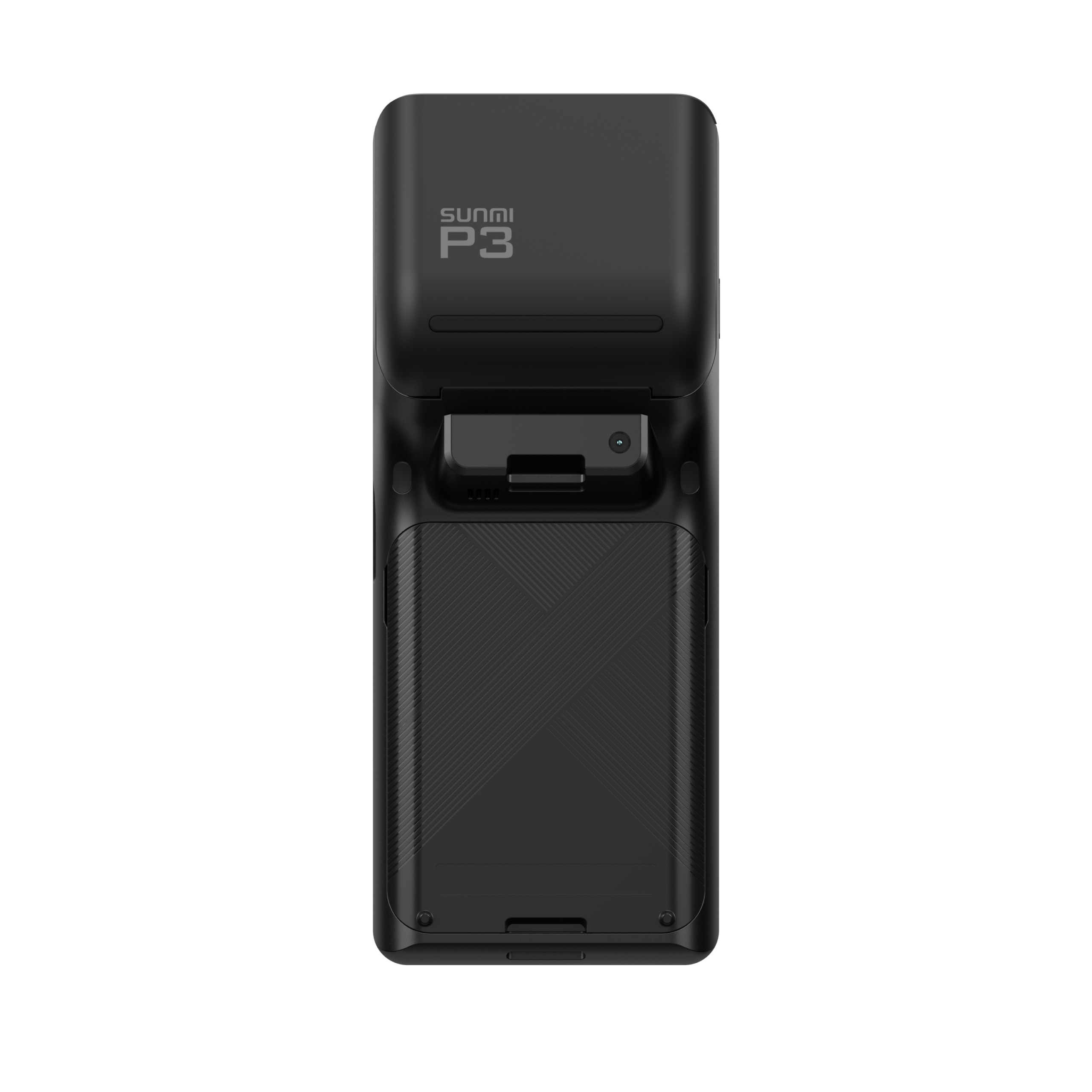

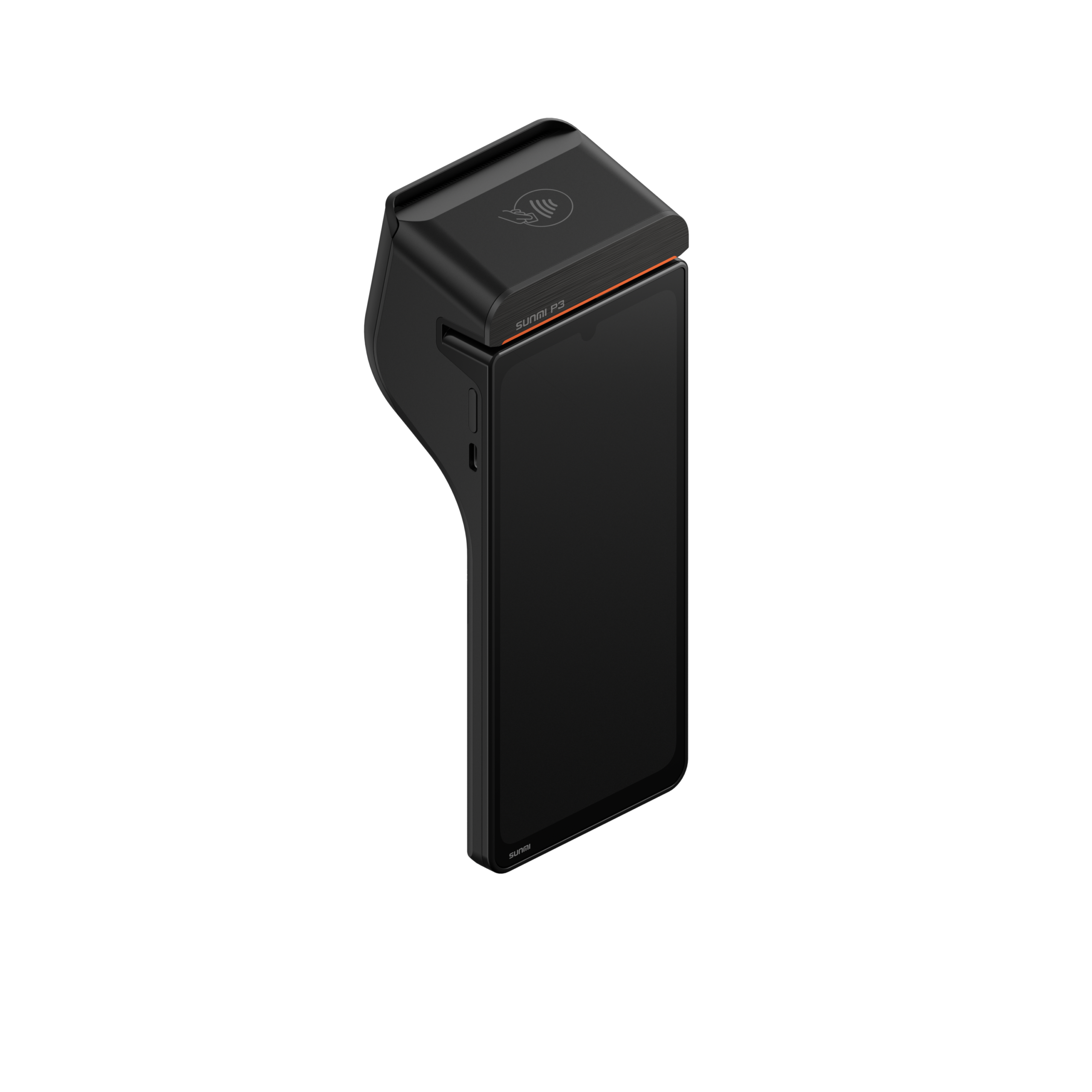

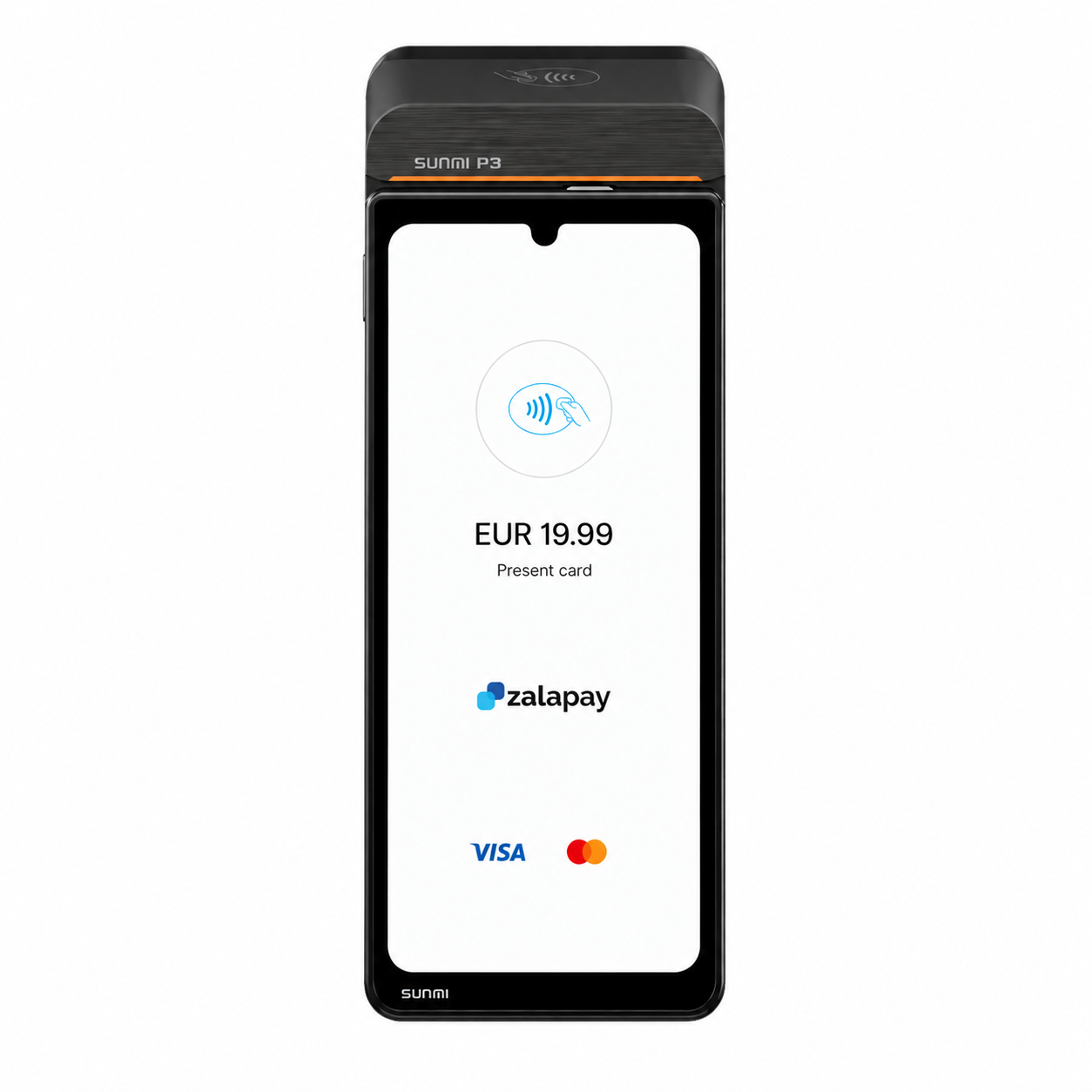

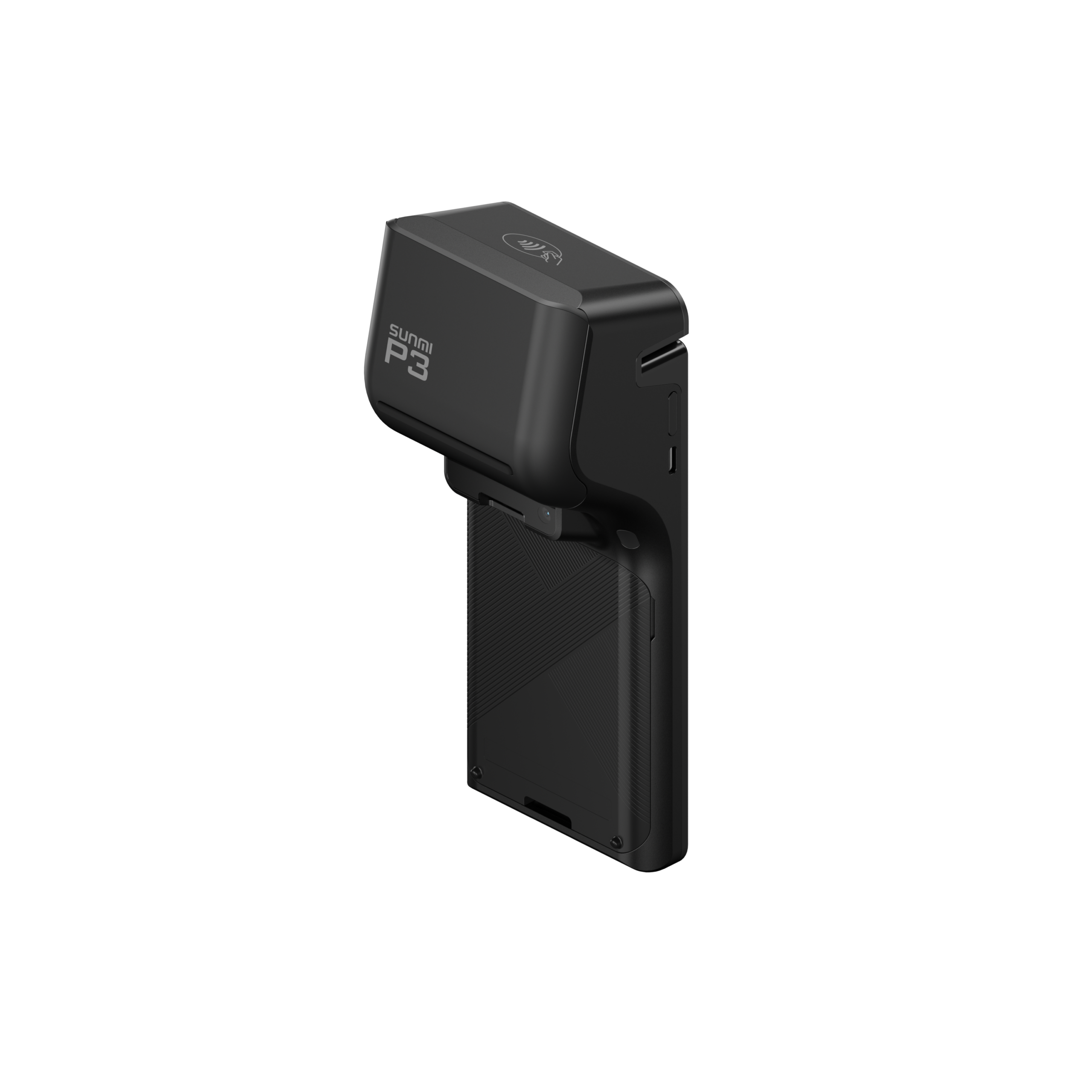

SUNMI P3 Family
Description
The SUNMI P3 Family is a series of Android-based smart payment terminals designed for secure payment acceptance, mobile POS applications, and business workflow integration. The family combines payment functionality, optional barcode scanning, printing, connectivity options, and enterprise device management capabilities in a compact handheld form factor.
The P3 Family includes multiple configurations including P3, P3H, and P3KH models, allowing businesses to select different hardware combinations depending on application requirements. The devices support card payments, NFC transactions, optional scanning, wireless communication, and SUNMI software ecosystem services.
Printing
- Integrated high-speed thermal printer
- Print speed: up to 70 mm/s
- Paper roll width: 58 mm
- Paper roll diameter: 40 mm
Technical features
- Android-based smart payment terminal platform
- Integrated payment acceptance hardware
- Capacitive multi-touch display
- Anti-fingerprint touchscreen coating
- Optional professional 1D/2D barcode scanner
- Optional fingerprint module
- Integrated speaker
Operating system
- SUNMI OS based on Android 11 Go
- Payment-focused operating system platform
- Supports SUNMI enterprise management ecosystem
Screen size
- Display size: 6.75 inches
- Resolution: HD+ 720 × 1600
- Display type: TFT IPS
- Touch panel: capacitive multi-touch
Memory
- RAM: 2GB
- Storage: 32GB ROM
Connection
- 4G mobile network support
- 2G / 3G / 4G communication
- Wi-Fi IEEE 802.11 a/b/g/n/ac
- Dual-band Wi-Fi: 2.4GHz / 5GHz
- Bluetooth 5.0 with BLE support
- GPS support: GPS, GLONASS, BeiDou, Galileo
- USB Type-C port
- Pogo pin charging/communication interface
Software
- SUNMI OS ecosystem
- Remote Key Injection (RKI) support
- Terminal management platform support
- Remote assistance capabilities
Environment
- Operating temperature: -10°C to 50°C
- Storage temperature: -20°C to 70°C
Certificates
- PCI PTS security standard compliance
- EMV certification
- Mastercard PayPass approval
- Visa payWave approval
- American Express certification
Physical characteristics
- Dimensions: 201.4 × 80 × 17 mm
- Weight: minimum 400 g including battery
- Battery: removable lithium battery
- Battery capacity: 7.7V / 2630mAh
Personalisation
- Dimensions: 201.4 × 80 × 17 mm
- Weight: minimum 400 g including battery
- Battery: removable lithium battery
- Battery capacity: 7.7V / 2630mAh
Technical characteristics
- Processor: Quad-Core A53, 2.0GHz
- Rear camera: 5MP autofocus or 2MP fixed focus option
- Front camera: 2MP fixed focus option
- Magnetic stripe reader: tracks 1/2/3, bidirectional reading
- IC card reader: ISO 7816 compliant
- NFC reader: Type A/B, MIFARE, ISO/IEC 14443, EMV, PayPass, PayWave
- PSAM slots: 2
- SIM configurations: configurable depending on model
- Speaker output: 90dB
