PAX IM30
Description

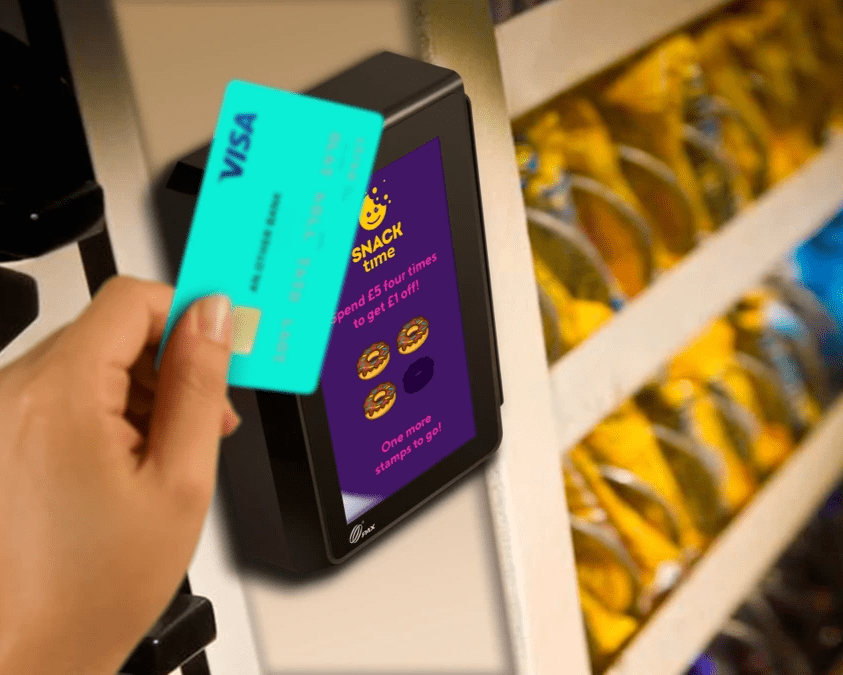

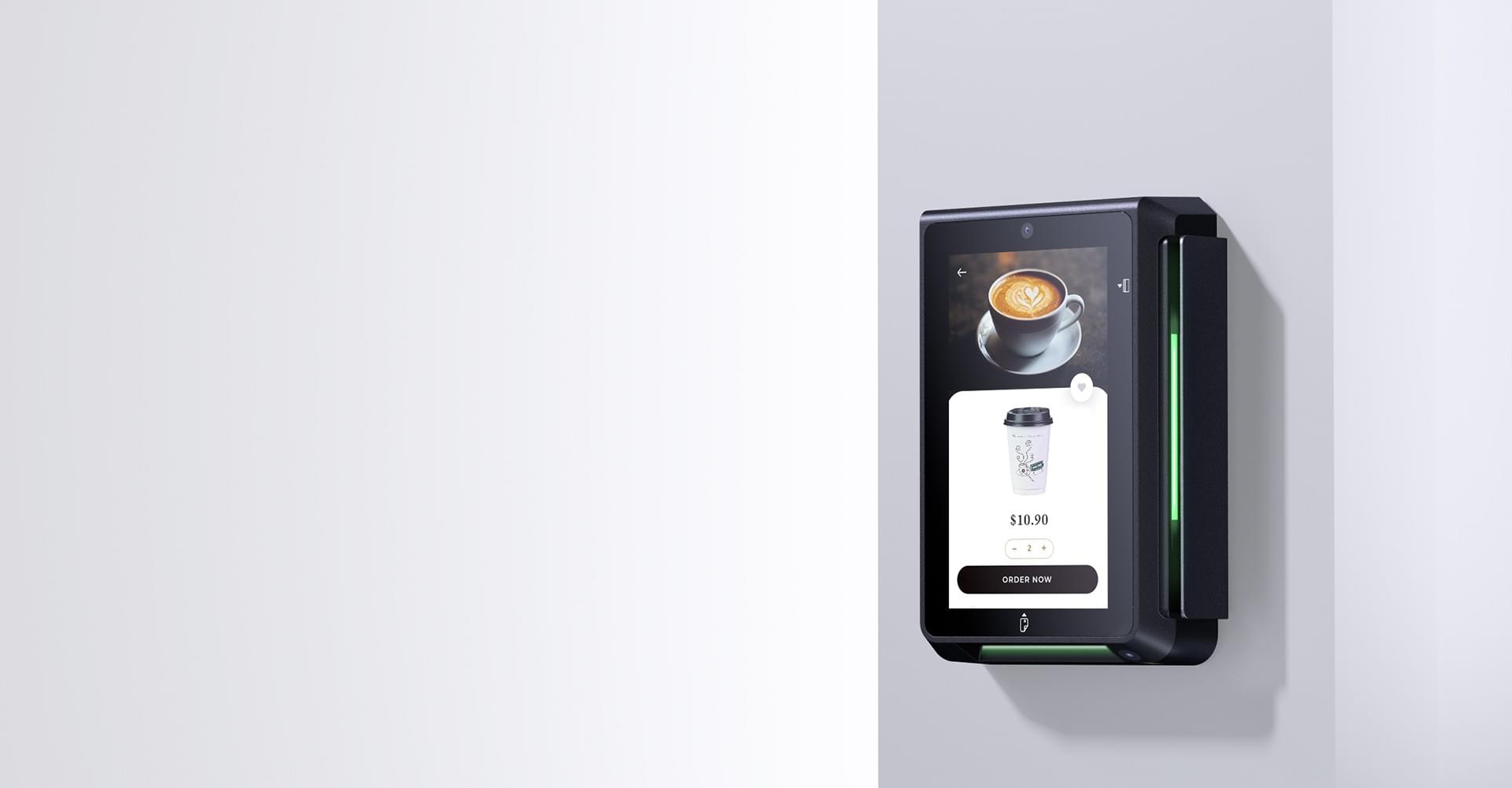

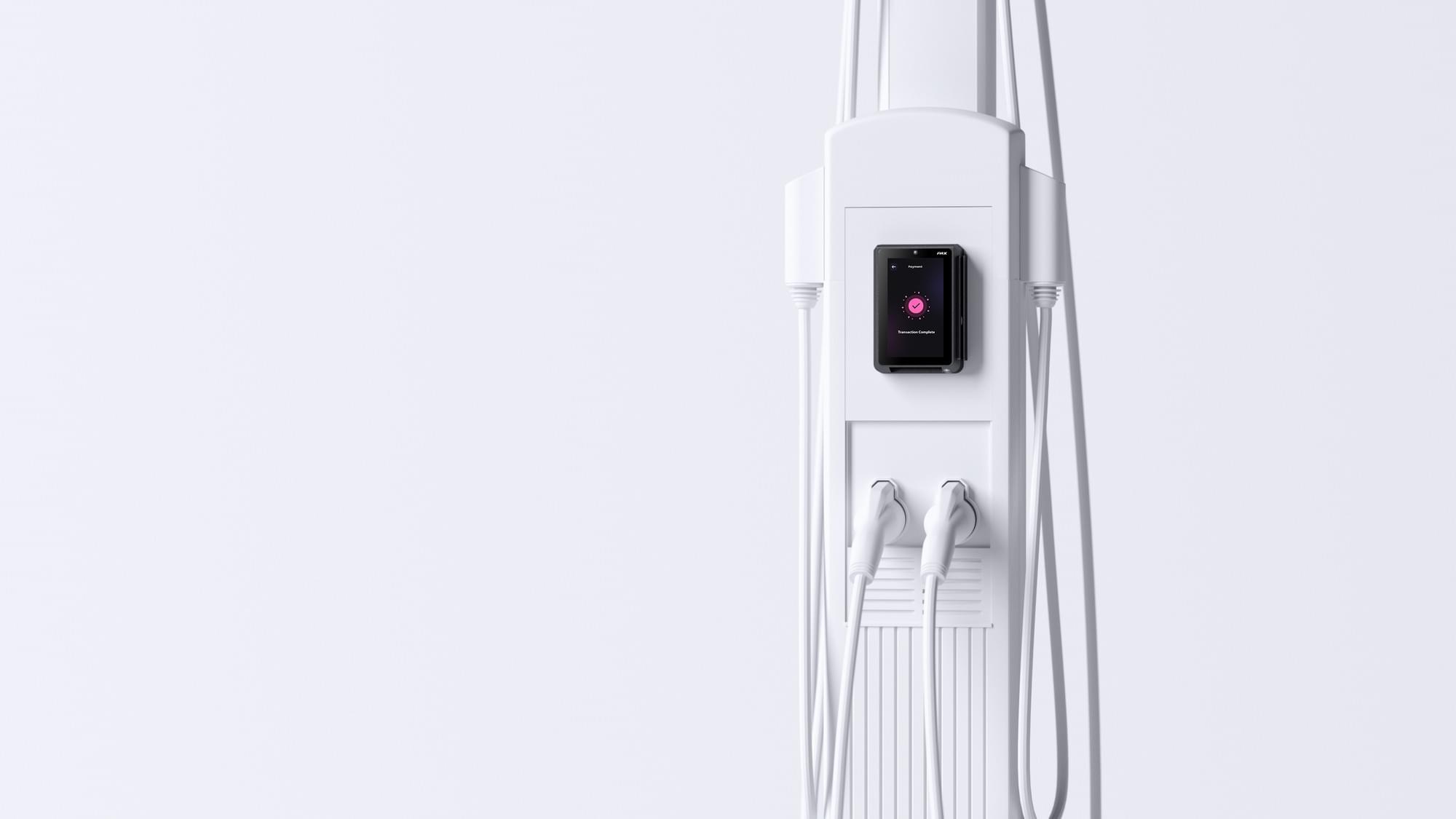

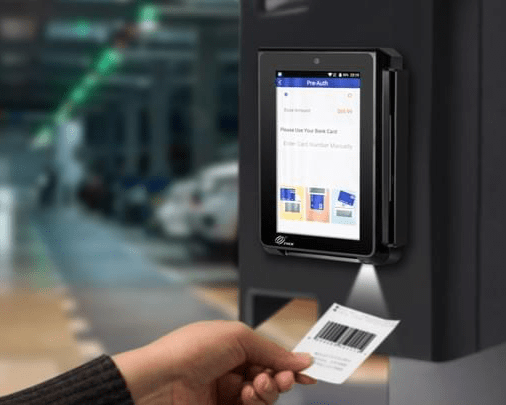

The PAX IM30 is a rugged, all-in-one Android-based unattended payment terminal built to power self-service kiosks, vending machines, parking systems, EV chargers, and more. With its bright 5″ capacitive touchscreen and intuitive virtual keyboard, it brings a modern, customer-friendly interface to unattended environments. Designed for harsh indoor or outdoor use, the IM30 delivers secure, versatile payment processing — including chip & PIN, contactless/NFC, magnetic stripe, and QR code transactions — while supporting dynamic multimedia content and remote management via the PAX MAXSTORE ecosystem.
Technical features
Processor:
- Quad-core ARM Cortex-A53
- 1.6 GHz (PCI 6)
- 1.2 GHz (PCI 5)
Display:
- 5.0″ TFT IPS touchscreen
- Resolution: 720 × 1280 (HD)
Payment & Data Capture:
- Card Readers: Chip & PIN, Contactless (NFC), Magnetic Stripe
- QR Scanner: 0.3 MP or 2 MP (reads 1D & 2D codes)
- Camera: 2 MP front-facing
Operating system
Depends on the model:
- PayDroid powered by Android
- Android 7.1 (PCI 5 models)
- Android 10 (PCI 6 models)
Memory
Depends on the model:
- Flash: 8 GB
- RAM: 2 GB LPDDR4
- Alternative RAM: 1 GB LPDDR3 (optional 2 GB LPDDR3)
Connection
Connectivity (Depends on the model):
- 4G LTE + Ethernet + Dual-band Wi-Fi + Bluetooth 5.0
- Ethernet + Dual-band Wi-Fi + Bluetooth 5.0
- Ethernet-only
- Optional: SIM slot, GPS, external antenna (SMA)

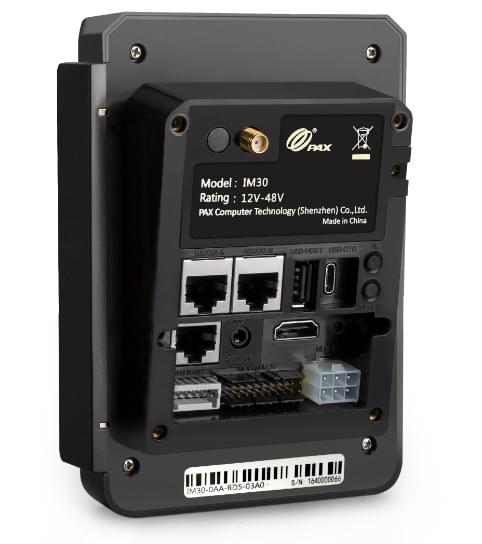

Interfaces & Ports:
- 2 × RS232
- 1 × USB Host
- 1 × USB OTG
- 1 × LAN
- 1 × HDMI
- MDB Slave
- MDB Master
- Digital I/O
- Microphone & Speaker
Environment
- Operating Temperature:
- −20 °C to +70 °C (standard models)
- 0 °C to +50 °C (Indoor version)
- Storage Temperature: −30 °C to +70 °C
- Humidity: 5%–95% non-condensing
Certificates
Security & Certifications (Depends on the model):
- PCI PTS 5.x or 6.x SRED
- EMV L1 & L2 (Contact & Contactless)
- Payment Schemes:
Visa payWave, Mastercard Contactless, American Express,
Discover D-PAS, JCB J/Speedy, Interac Flash, UPI qUICS, Felica - Regulatory: CE, RoHS, UL, FCC, IC, UKCA, VCCI, ATEX
- Ingress / Impact Protection:
- Up to IP65 / IK09
- Indoor version: IP54 / IK06
Physical characteristics
Audio:
- Integrated speaker
- Built-in microphone
Power (Depends on the model):
- 7–48 V DC via MDB Slave, RS232 or Digital I/O
- 12–48 V DC via MDB Slave or RS232
- 19–30 V AC via Executive interface
- 24 V DC via JVMA interface
Physical Characteristics:
- Dimensions: 105 × 146 × 47 mm
- Installation cut-out: 82 × 107 mm
- Weight: 486 g
- Keys: Reset key, Service key
Additional accessories
- Mounting fixture
- External antenna (optional)
