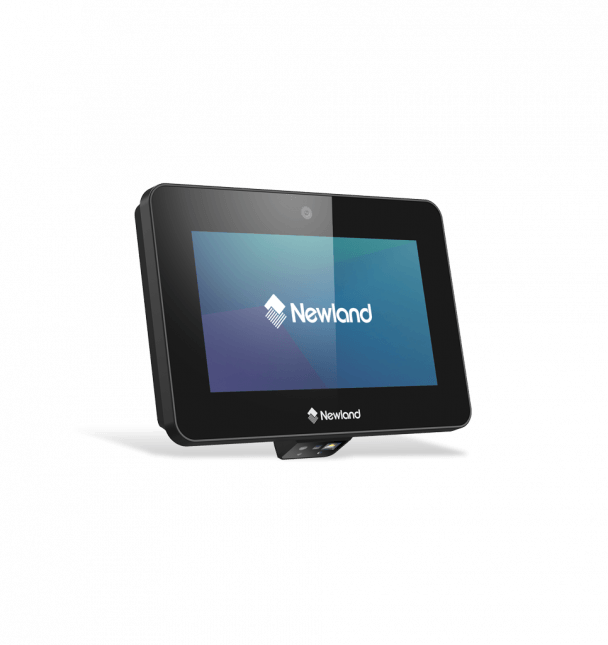

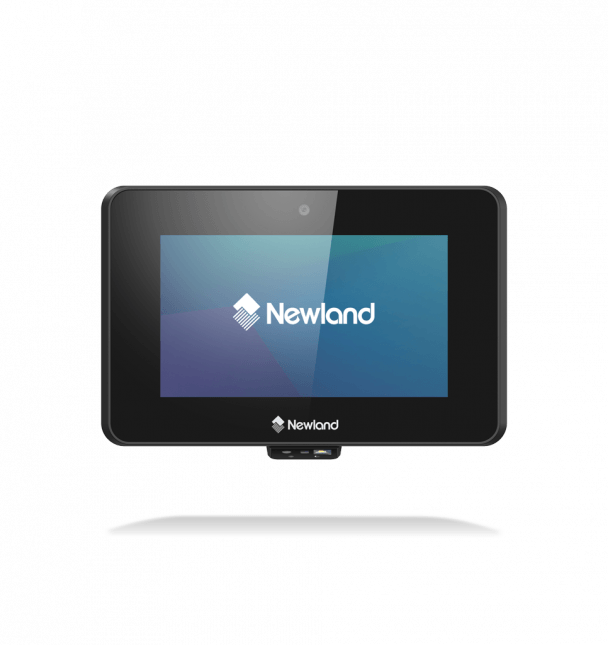

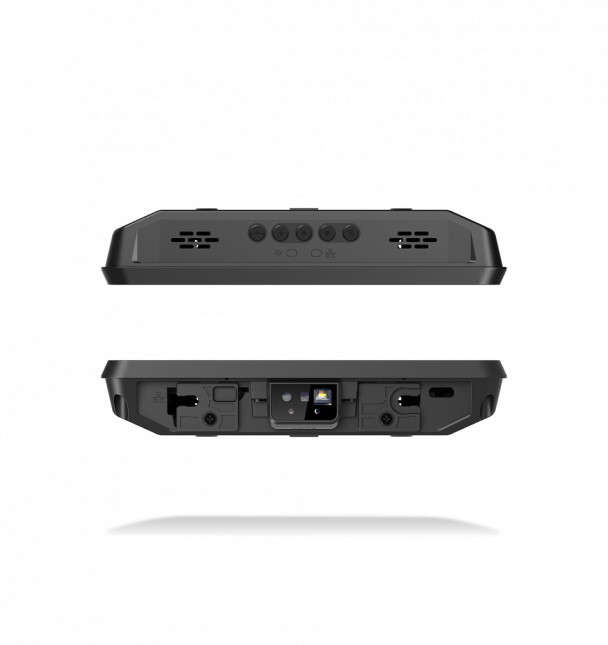

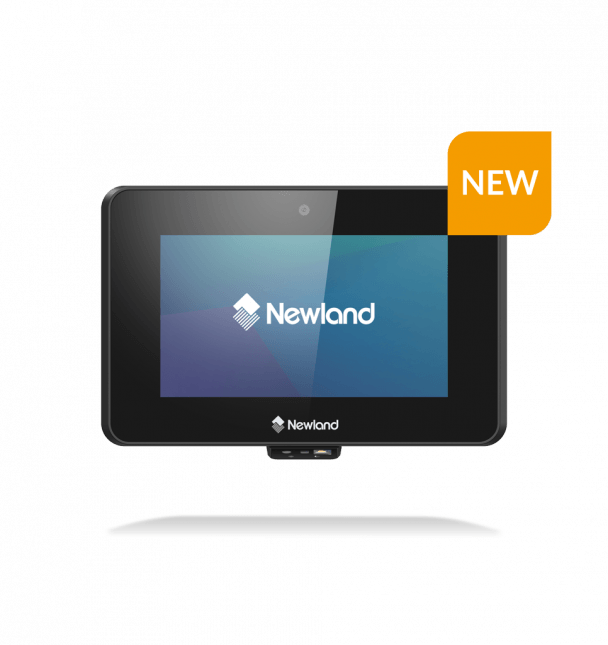

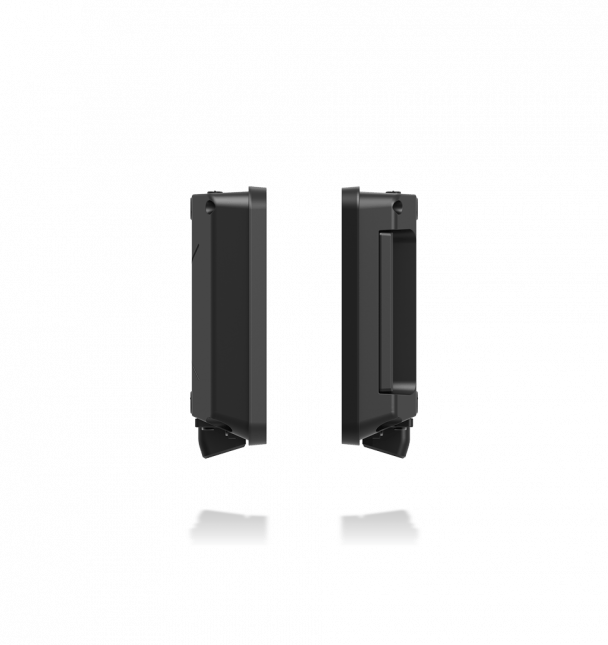

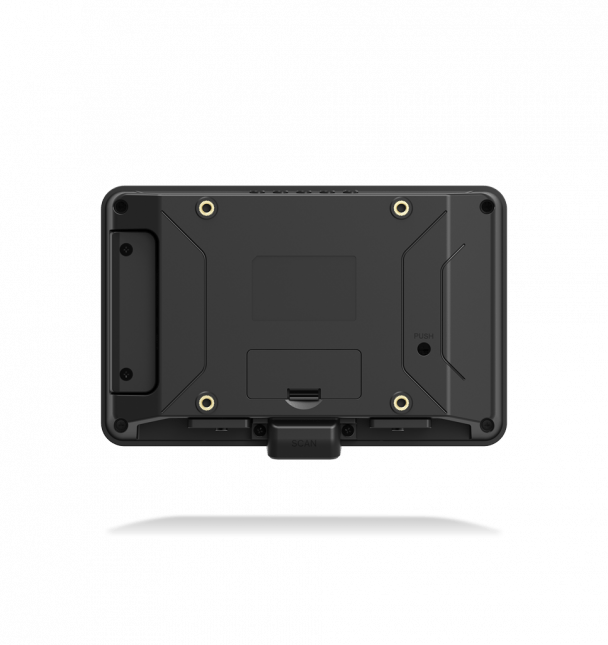

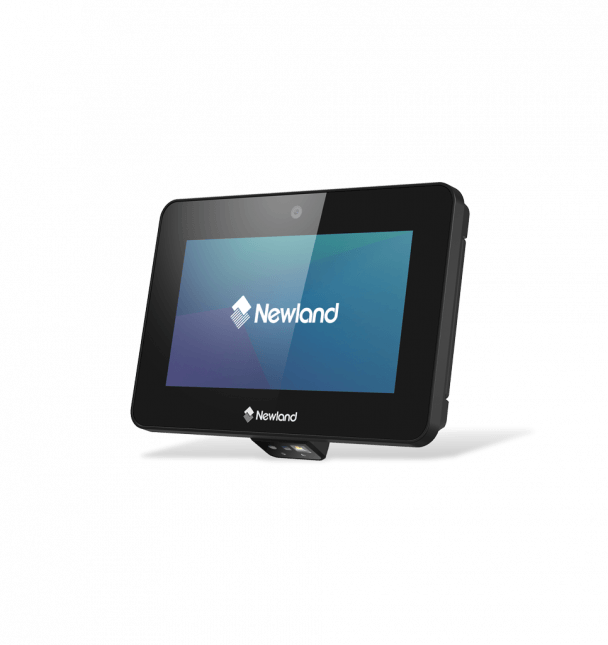

NQuire 500 Skate II
Description
Compact in size yet powerful in function, the NQuire 500 Skate II boasts a touchscreen display and megapixel scanning technology, delivering unmatched performance. Its upgraded sleek design adds a contemporary feel that easily blends into your self-service environment.
Technical features
| 1D: | All major 1D symbologies |
| 2D: | All major 2D symbologies |
| Depth of Field EAN 13 (13mil): | 70mm-610mm |
| Depth of Field Code 39 (5mil): | 110mm-290mm |
| Depth of Field PDF417 (6.7mil): | 110mm-230mm |
| Depth of Field DataMatrix (10mil): | 110mm-260mm |
| Depth of Field QR (15mil): | 55mm-410mm |
Operating system
| MDM (certified): | Ndevor |
Environment
| Operating Temperature: | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Humidity: | 5% to 90% (non-condensing) |
| Electro Static Discharge (ESD): | ±12kV (Air discharge), ±6kV (Direct discharge) |
| IP Rating: | IP54 (front only) |
Physical characteristics
| AC Adapter: | 12V@3A |
| Camera: | Front camera: 8MP |
| Dimensions (mm): | 156.5 (W) x 100.4 (H) x 29 (D) mm |
| Display: | 5”, (854×480), capacitive touch screen |
| Interfaces: | 1 X USB Type-C, 2 X GPIO, 1 X expansion slot, Ethernet RJ45, MicroSD Card support (up to 128GB) |
| Keypad: | Up/down keys, Vol+/Vol-keys, Menu key |
| Modules: | Built in 4G module |
| Notifications: | Speaker and multicolour LEDs |
| Power over Ethernet: | RJ45 IEEE 802.3 af/at |
| Sensors: | Gravity Sensor, Infrared Sensor |
| SIM: | Nano+Nano/Nano+TF |
Additional accessories
| Optional: | NFC module, MSR module |
Technical characteristics
| Operating System: | Android 13 GMS |
| Processor: | 2.0GHz Octa-Core 64-bit Processor |
| Memory RAM: | 4GB |
| Memory Flash: | 64GB |
| WWAN RADIO: | 2G: 850/900/1800/1900 MHz; 3G: WCDMA (B1, B2, B5, B8); CDMA:1X EVDO (BC0); TD-SCDMA: B34/39; 4G: TDD-LTE (B34,B38, B39, B40, B41), FDD-LTE (B1,B2,B3,B5, B7, B8, B20, B28 a&b) |
| WLAN RADIO: | IEEE 802.11 a/b/g/n/ac, support 2.4G and 5G, dual frequency |
| WPAN RADIO: | Bluetooth 5.2 |
| NFC: | 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID card reading, supports reader/writer modes. (optional NFC module is required) |
| GPS: | GPS (AGPS), GLONASS, Beidou, Galileo |
